Yamaha / Lecomble & Schmitt 20HB Hydraulic Steering Helm

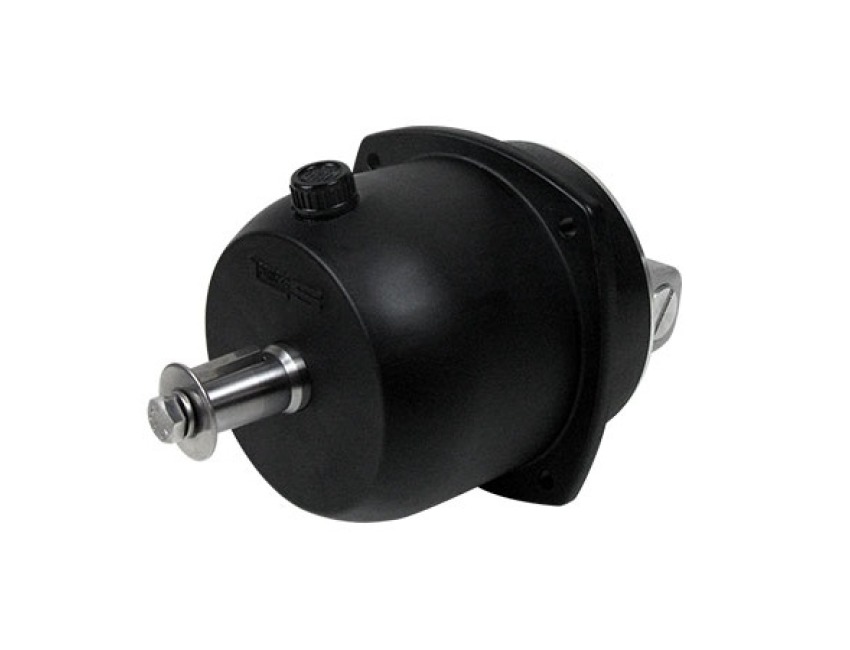

Yamaha / Lecomble & Schmitt Hydraulic Steering Helm 20HB-CAR

Part Number: YMF-11220-08-04

Hydraulic helm pump for outboard or inboard motor boats, flow rate 20 cc/t

Genuine Yamaha spoked steering wheel with LS hydraulic steering pumps offer a smoother, more comfortable ride. They provide precise control in tricky sailing situations by significantly reducing the effort required to turn the steering wheel. The 20 HB CAR helm pump is fitted with non-return valves, preventing any unwanted movement of the cylinder(s). It also has pressure relief valves to protect the circuit against abnormal pressure build-up. Depending on the model of LS hydraulic cylinder associated with this pump, a complete movement from port to starboard will take between 2.7 and 4.6 turns of the steering wheel.
Hydraulic pump features
Thanks to its design and choice of materials, the LS hydraulic piston pump is a quality product that takes up very little space and is easy to maintain. It offers your steering system energy efficiency, durability, comfort and precision. LS products come with a 2-year guarantee and comply with European regulations.
