R&D Drive Plate For ZF Hurth & PRM (10 Teeth Spline, 235mm Diameter) - 22B95 DRIVE PLATE
Click to enlarge
Code x
MPN 22B95 DRIVE PLATE
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

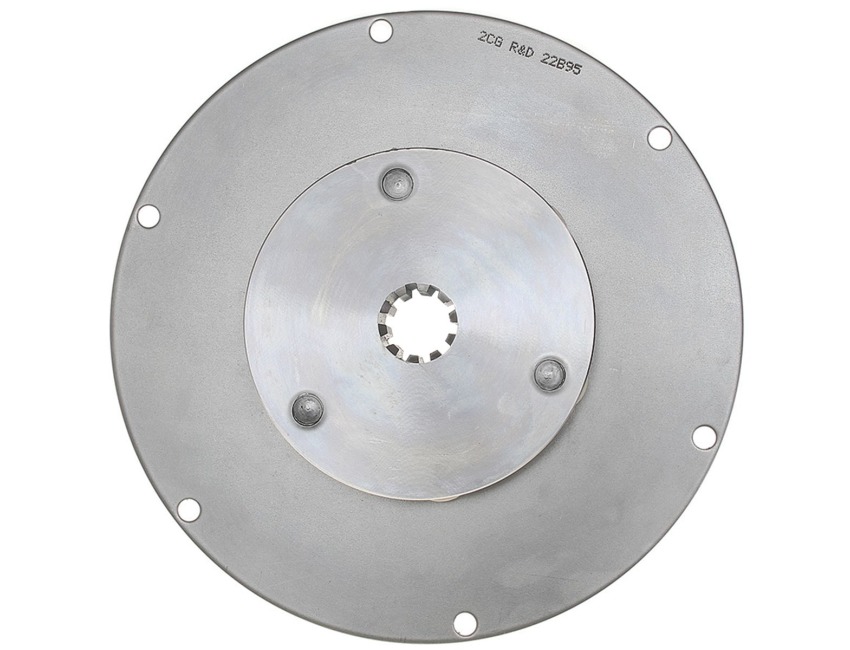

R&D Drive Plate For ZF Hurth & PRM (10 Teeth Spline, 235mm Diameter) - 22B95 DRIVE PLATE
Part No: 22B95 DRIVE PLATE
Spline for 10-Tooth DIN 5464 (PRM 80/120/150, Hurth 100/125) input shaft. Single stage 'loop' damper element. Back plate for mounting: 6× 8.1mm holes, 222.2" PCD.
Bolt Hole PCD - 6 × 8.1mm (0.32") on 222.25mm (8-3/4") PCD
Gearbox Spline - 10 teeth B10 x 23 × 29 DIN 5464 (29mm diameter)
Torque - 135 Nm, 100 lbft
Brand - R&D Marine
Application - Beta Marine engines mated to gearboxes: PRM 80, 90, 120, 125 & 150 gearbox, ZF Hurth HBW 35, 40, 50, 100, 125 & 150 gearboxes, Technodrive TMC 30, 40, 50 & 60 gearboxes & Borgwarner 500.
Diameter - OD: 235mm (9-1/4")
Country of Origin - United Kingdom
Specification List
| Type | Drive Plate |
|---|
