Quick Prince DP2L 770 Vertical Windlass Kit 350W 12V 6mm - AQ1DP2L06
Click to enlarge
Code 1
MPN AQ1DP2L06
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

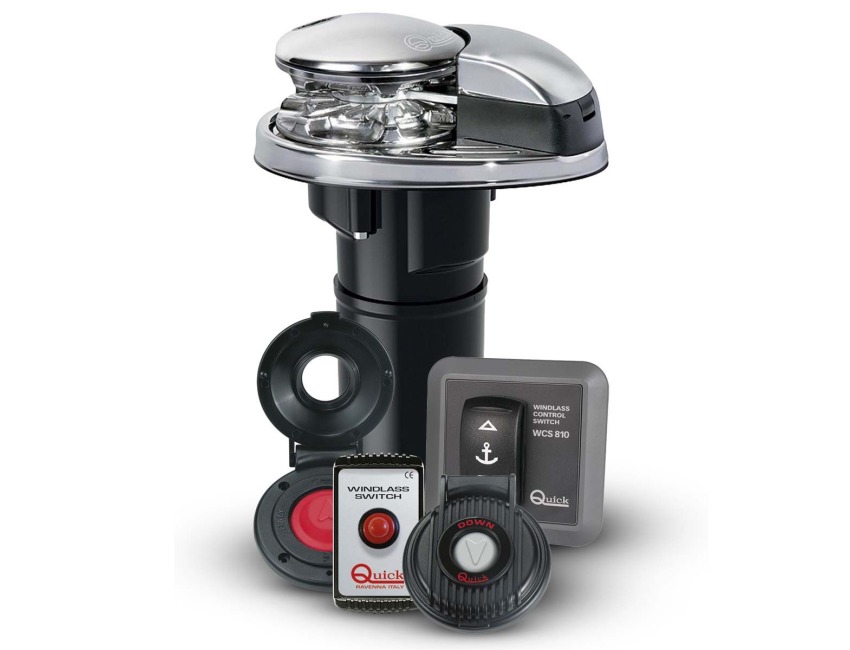

Quick DP2L 770 Vertical Windlass Kit 350W 12V 6mm
Part No: AQ1DP2L06
Quick DP2L 770 12V 350W vertical windlass kit for boats from six to eight meters (20-26ft). This kit is made up of the following Quick products:

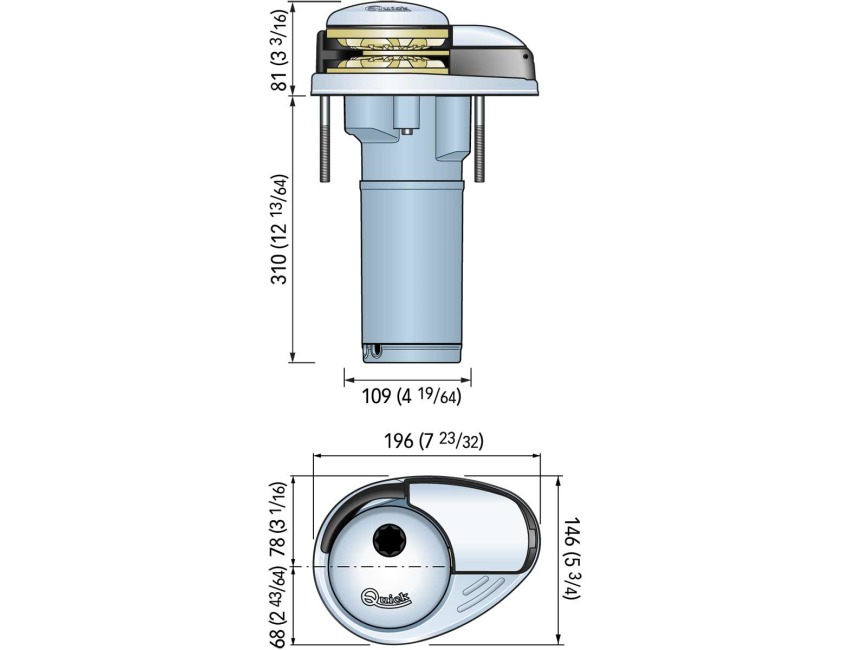

Quick DP2L 12V 350W Vertical Windlass with 6mm Gypsy (FSDP2L060006A00)
The windlass has a stainless steel AISI 316 base and BHC construction with a rope and chain on a single gypsy. Other features include an integrated sensor and magnet for chain counter, a manual Free-Fall system, motor watertight to IP66 and a BHC material gearbox. Chain: 6mm DIN 766, 6mm ISO. Rope: 1/2", 12.7mm. Gypsy OD: 105mm (4-9/64")

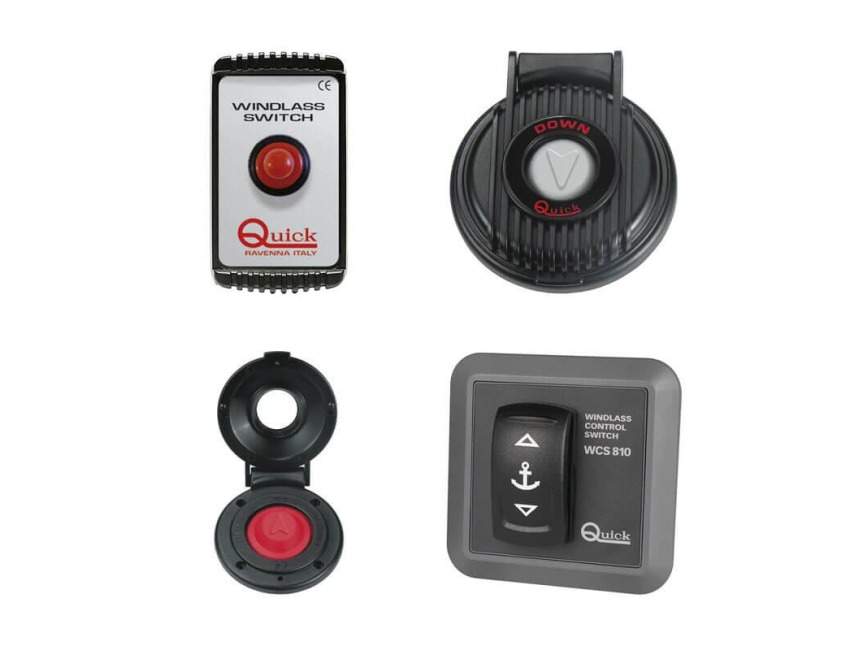

Quick WCS 810 Rocker Switch Deluxe for Windlass Control (Up / Down) (FPWCS8100000A00)
Quick windlass control switch panel WCS 810 enables you to operate the windlass from as far as the rudder-area. The Quick windlass control panel allows the windlass to be pulled up or lowered down with the press of a rocker switch.
Quick 10040 Hydraulic Magnetic Circuit Breaker (40A / DC) (FD1004000000A00)
The Quick 40 amp hydraulic magnetic circuit breaker offers protection when using direct currents. The slow burn circuit breaker will trip in over-current situations, breaking the circuit and protecting your equipment. They can be manually reset and are suitable for up to 80V DC. The Quick 10040 circuit breaker trips in the presence of shorts or prolonged overloads.
Quick 900/UB Foot-Switch for Anchor Lifting (Up / Black) (FP900UB0000A00)
The Quick up foot switch 900/UB in black is suitable for raising anchor without using your hands. The Quick foot switch features a normally open contact and a protective lid to prevent any accidental switch operation.
Quick 900/DB Foot-Switch for Anchor Lowering (Down / Black) (FP900DB0000A00)
The Quick down foot switch 900/DB in black is suitable for anchor lowering without using your hands. The Quick foot switch features a normally open contact and a protective lid to prevent any accidental switch operation.
Note: the anchor down switch must be installed without using silicone.
Material Stainless Steel
Primary Construction Stainless Steel
Suitable For Chain and Rope
Boat Size 6 to 8 metres in length
Gypsy Size 6mm
Brand Quick
Series Prince DP2L
Model DP2L 770
Voltage Description 12V DC
Wattage 350W
Contents DP2L 12V 350W Vertical Windlass with 6mm Gypsy, WCS810 Control Panel, 10040 Circuit Breaker, Foot Switch Up Black, Foot Switch Down Black
Specification List
| Type | Winch |
|---|
