Quick Genius Windlass GP2 2000F 800W 12V free fall 8mm
Click to enlarge
Code 1
MPN FSGP22012F08A00
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

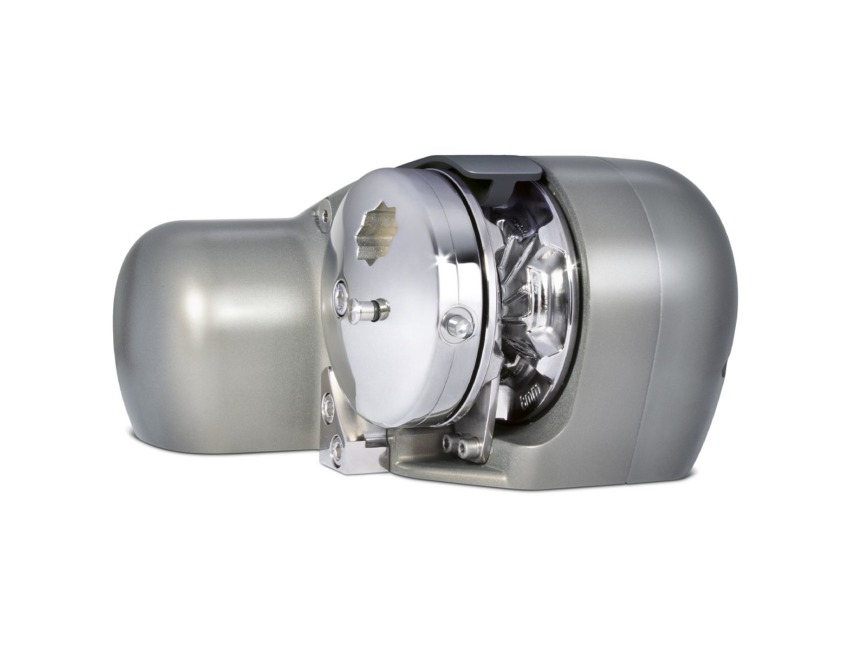

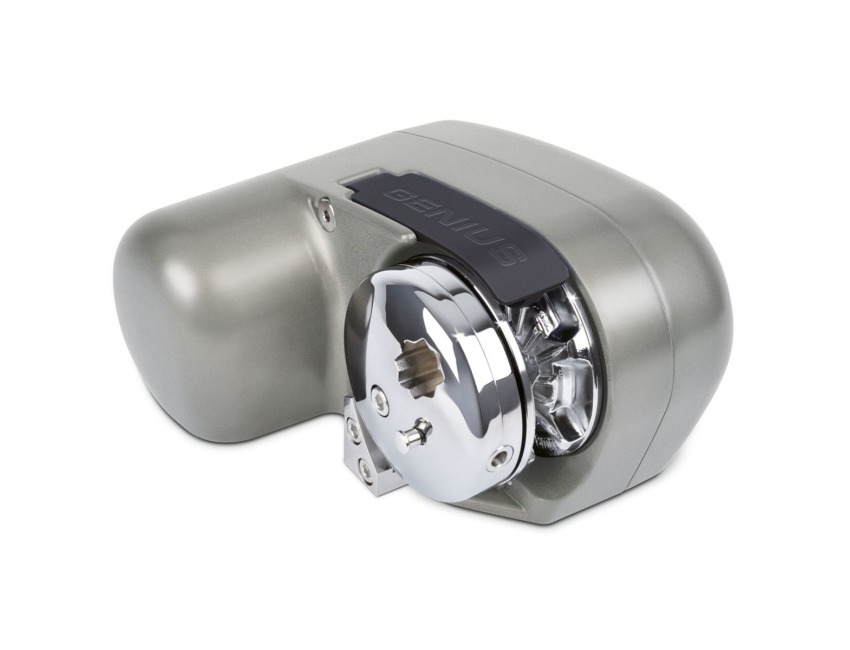

Quick Windlass GP2 2000F 800W 12V free fall 8mm
Part No: FSGP22012F08A00
The Quick GP2 2000F horizontal on-deck windlass is suitable for boats from 8-13 meters (26-43 ft) and is supplied with a 12V T6415-12 contactor unit and a lever for the windlass as standard. To ensure durability and top performance, the windlass has an anodized aluminium in hard oxide base and an epicyclical gearbox that provides much higher efficiency (+40% compared to equivalent traditional gearboxes).
This windlass has an 8mm gypsy which is suitable for 8mm DIN 766, 8mm ISO and 5/16" G4 chain, as well as 1/2" (12.7mm) rope. (PLEASE NOTE these values refer to a three-strand polyester rope with a rope/chain splice manufactured with the Quick system).
This particular model features Free-Fall technology which allows free running of chain through the gypsy when lowering the anchor. Simply by pressing the down control button, the windlass will release its clutch and the gypsy will freewheel. To stop the Free-Fall, press the up control button on the windlass and the clutch will engage stopping the gypsy and allowing retrieval of the chain.
Product contents include the windlass (on deck unit and motor gearbox), contactor unit, base gasket, drill template, handle, bolts and screws (for assembly), user's manual and conditions of warranty.
Material Aluminium
Primary Construction Aluminium
Suitable For Chain and Rope
Boat Size 8 to 13 metres in length
Gypsy Size 8mm
Brand Quick
Series Genius
Model GP2 2000F
Voltage Description 12V DC
Wattage 800W
Working Load 120kg (265 lb)
Maximum Pull Load 900kg (1984 lb)
Maximum Chain Speed 29.6mm (97.1 ft/min) At Working Load: 20mm (65.6 ft/min)
Amps Description 96A at 120kg
Fuse 80A Protection Circuit Breaker
Contents Windlass, reversing contactor unit, base gasket, drill template, handle, bolts and screws (for assembly), user’s manual and conditions of warranty.
Approvals CE

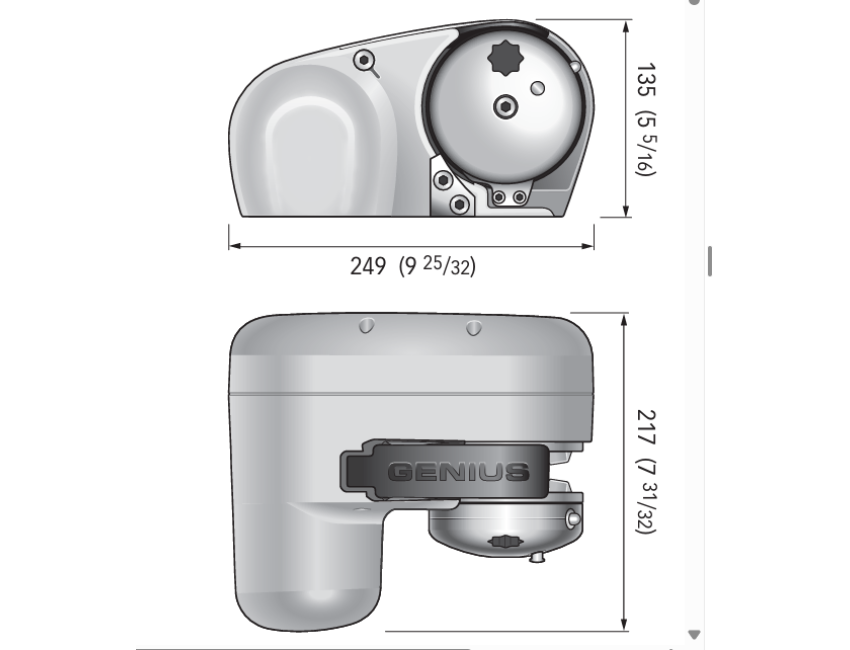

Height Description 135mm (5-5/16")
Width 217mm (7-31/32")
Depth 249mm (9-25/32)
Weight 10.9kg (24 lb)
Thickness Deck: 20mm - 40 mm (3/4” - 1” 9/16)
Size Motor Cable: 16mm2 (AWG 5)
Specification List
| Type | Winch |
|---|
