Mercury - Washer - Quicksilver - 12-34567

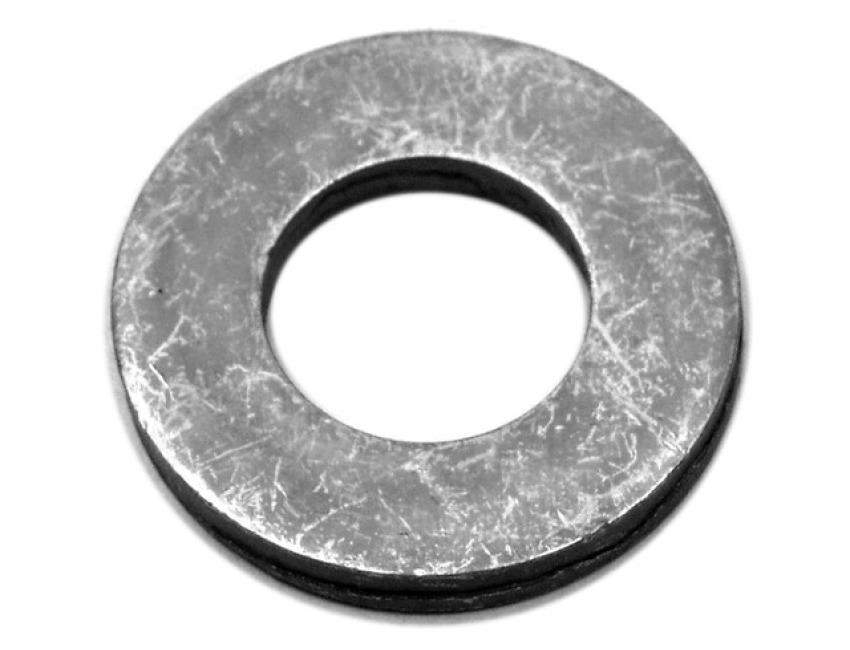

Genuine Mercury / Quicksilver Washer. Part number 12-34567.

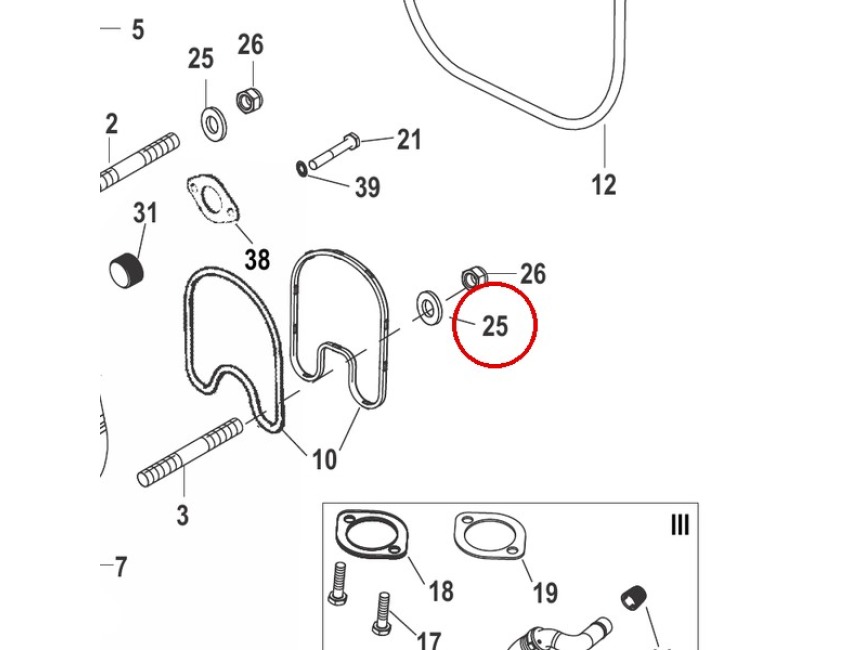

Genuine replacement washer used in the front mount, gimbal housing, and steering plate assemblies of MerCruiser stern drive systems. Supplied as a single piece (quantity two indicated in the catalogue listing).

This hardware component is a direct factory replacement, ensuring correct fit and function within the original assembly.

Also replaces / supersedes: 12-33996.

Fits:

• 2.5L GM 153 I/L4 (S/N 0B531854–0C856558)
• 3.0L GM 181 I/L4 (S/N 0B450801–0C856558)
• 3.7L (2 BBL.) MERCURY 224 I/L4 (S/N 0B774252 & Up)
• 3.7LX (4 BBL.) MERCURY 224 I/L4 (S/N 0B775249 & Up)
• 4.3L (2 BBL.) GM 262 V-6 (S/N 0B773243–0D714106)
• 4.3L CARB ALPHA/BRAVO (S/N 0M615000–1A063239; 1A063240 & Up)
• 4.3L EFI (GEN+) TBI GM 262 V-6 (S/N 0L619000–0M322780)
• 4.3L MPI ALPHA/BRAVO (S/N 0M300000–1A063239; 1A063240 & Up)
• 4.3L MPI ALPHA/BRAVO EC (S/N 1A637496 & Up)
• 4.3LX (4 BBL.) GM 262 V-6 (S/N 0B775130–0D714369)
• 5.0L (2 BBL.) GM 305 V-8 (S/N 0B774445–0F600999)
• 5.0LX (4 BBL.) GM 305 V-8 (S/N 0B773740–0F600999)
• 5.7L GM 350 V-8 (S/N 0B525982–0F600999)
• 7.4L BRAVO (MPI)(GEN. VI) GM 454 V-8 (S/N 0L010003–0M024330)
• 7.4L MPI MIE (L29) GEN. VI GM 454 V-8 (S/N 0L002006–0L674613)
• 8.2L MIE MPI (GEN. VI) GM 502 V-8 (S/N 0L002450–0L674200)
• 120 GM 153 I/L4 (S/N 6229718–0B531853)
• 120/140 (S/N 4893635–6225576)
• 140 GM 181 I/L4 (S/N 6229718–0B450800)
• 165 (S/N 4890460 & Up)
• 165 (2 BBL.) MERCURY 224 I/L4 (S/N 0B434941–0B774251)
• 170 (2 BBL.) MERCURY 224 I/L4 (S/N 6916779–0B434940)
• 175 (2 BBL.) GM 262 V-6 (S/N 0B527955–0B773242)
• 180 (4 BBL.) MERCURY 224 I/L4 (S/N 0B436391–0B775248)
• 185 (2 BBL.) GM 262 V-6 (S/N 0A331455–0B527954)
• 190 (4 BBL.) MERCURY 224 I/L4 (S/N 6916779–0B436390)
• 200 (2 BBL.) GM 305 V-8 (S/N 0B525982–0B774444; 6218462–0B525981)
• 205 (4 BBL.) GM 262 V-6 (S/N 0A331455–0B775129)
• 225-S (S/N 3856268–4200499)
• 228 (S/N 4898730–6225576)
• 228 (4 BBL.) GM 305 V-8 (S/N 5170009–6218461)
• 228 MIE (4 BBL.) GM 305 V-8 (S/N 5170009–5907057)
• 230 (4 BBL.) GM 305 V-8 (S/N 0B525982–0B773739; 6218462–0B525981)
• 233 (S/N 4200500 & Up)
• 260 (S/N 4898730–6225576)
• 260 (4 BBL.) GM 350 V-8 (S/N 0B525982–0B773739; 4908850–6218461)
• 330 GM 454 V-8 (S/N 6083145–0B816540)
• 350 MAG. ALPHA (4 BBL.) GM 350 V-8 (S/N 0A635178–0F600999)
• 420 GM 454 V-8 (S/N 0A398941–0B622418)
• 425 GM 454 V-8 (S/N 0A398941–0D937011)
• …and 55 more Mercury / Mariner / MerCruiser models — contact us to confirm your engine

Specifications:

• Weight: 0.007 kg
• Boxed dimensions: 4.699×2.540×1.397 cm
