Mercury - Trim Pump Harness Assembly - Quicksilver - 84-865771A02

Click to enlarge

MPN: 84-865771A02

£19.20
In Stock

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

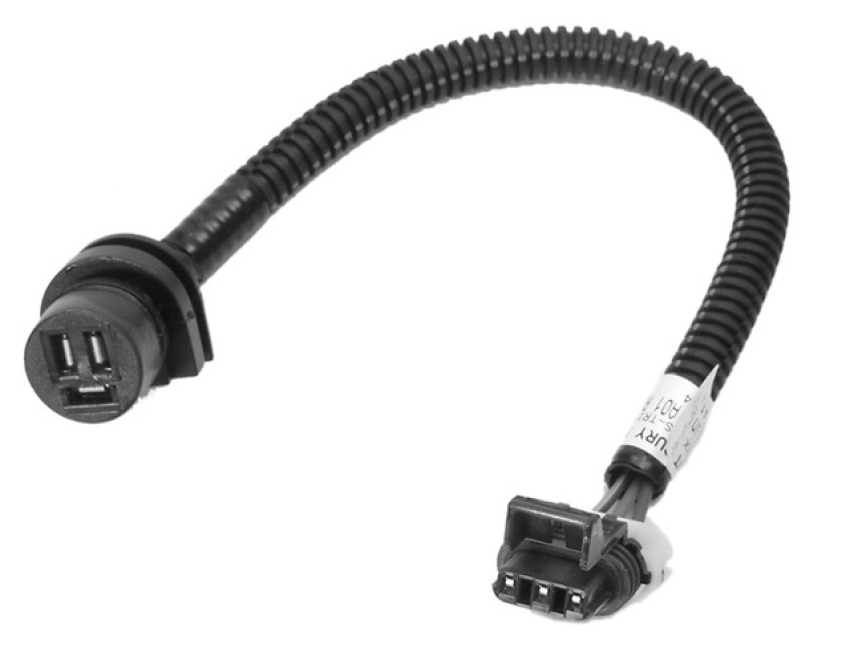

Genuine Mercury / Quicksilver Trim Pump Harness Assembly. Part number 84-865771A02.

Wiring harness assembly for the trim pump system. This is a complete harness unit designed to connect the trim pump motor and control circuits.

Genuine Quicksilver replacement harness for Mercury outboard trim and tilt systems.

Fits:

  • 2.0L EI 115 (S/N 70294910–70377490)
  • 2.0L EI 130 (S/N 70000000–70002129)
  • 2.0L EI 150 (S/N 70015460–70017409)
  • 2.0L EI 170 (S/N 70024870–70026629)
  • 2.0L ES 130 (S/N 70002130–70015639)
  • 2.0L ES 150 (S/N 70017410–70024869)
  • 2.0L ES 170 (S/N 70026630–70105129)
  • 496 BRAVO (S/N 1G700000–1G701393; 1G701569–1G799999)
  • 496 H.O. BRAVO (S/N 1G400000–1G412955; 1G700000–1G701402; 1G701569–1G799999)
  • 496 MAG (Base Model) (S/N 0M687083–1A350678; 1A350679 & Up)
  • 496 MAG (H.O. Model) (S/N 0M687144–1A350678; 1A350679 & Up)
  • 496 MAG EC (Base Model) (S/N 1A066166–1A350440)
  • 496 MAG EC (H.O. Model) (S/N 1A066166–1A350440)
  • 500 EFI (S/N 0L306500–0L307027; 0M050001–0M050853; 0M052001–0M053628; 0M900064–0M901284; 0M905089–0M907127)
  • 525 EFI (S/N 0M900146–0M953619)
  • 575 SCi (S/N 0M900000–0M950526)
  • 600 SCi (S/N 0M952908–0M962885; 0M962886 & Up)
  • ALPHA ONE (GEN.II) 1998 AND UP (S/N 0L100040 & Up)
  • BRAVO ONE (S/N 0W250000 & Up)
  • BRAVO THREE (S/N 0W250000 & Up)
  • BRAVO TWO (S/N 0W250000 & Up)
  • BRAVO X FOUR S (S/N 0W250000 & Up)
  • BRAVO X ONE (S/N 0W250000 & Up)
  • BRAVO X THREE (S/N 0W250000 & Up)
  • BRAVO X TWO (S/N 0W250000 & Up)
  • BRAVO XR ONE (S/N 0W240000 & Up)
  • BRAVO XR SPORT (S/N 0M970842 & Up)
  • BRAVO XR SPORTMASTER (S/N 0M906878 & Up)
  • BRAVO XR THREE (S/N 0W240000 & Up)
  • CMD QSD 2.0 EI 115 (S/N 88200000–88500999)
  • CMD QSD 2.0 EI 130 (S/N 88205000–88205999)
  • CMD QSD 2.0 EI 150 (S/N 88220000–88220999)
  • CMD QSD 2.0 EI 170 (S/N 88230000–88230999)
  • CMD QSD 2.0 ES 130 (S/N 88206000–88219999)
  • CMD QSD 2.0 ES 150 (S/N 88221000–88229999)
  • CMD QSD 2.0 ES 170 (S/N 88231000–88239999)
  • HI PERFORMANCE TRANSOM (S/N 0W150003 & Up)
  • INTEGRATED TRANSOM (S/N 0M052768 & Up)
  • QS ALPHA ONE (S/N 2A629407 & Up)
  • QS Bravo I-III (S/N 2A792421 & Up)
  • …and 1 more Mercury / Mariner / MerCruiser models — contact us to confirm your engine

Specifications:

  • Weight: 0.142 kg
  • Boxed dimensions: 12.065×12.065×18.415 cm

Specification List

Type Cable & Wiring Weight 0.142 KG
