Mercury - Throttle Position Sensor Assembly - Quicksilver - 805226A1

Click to enlarge

MPN: 805226A1

£239.70
In Stock

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

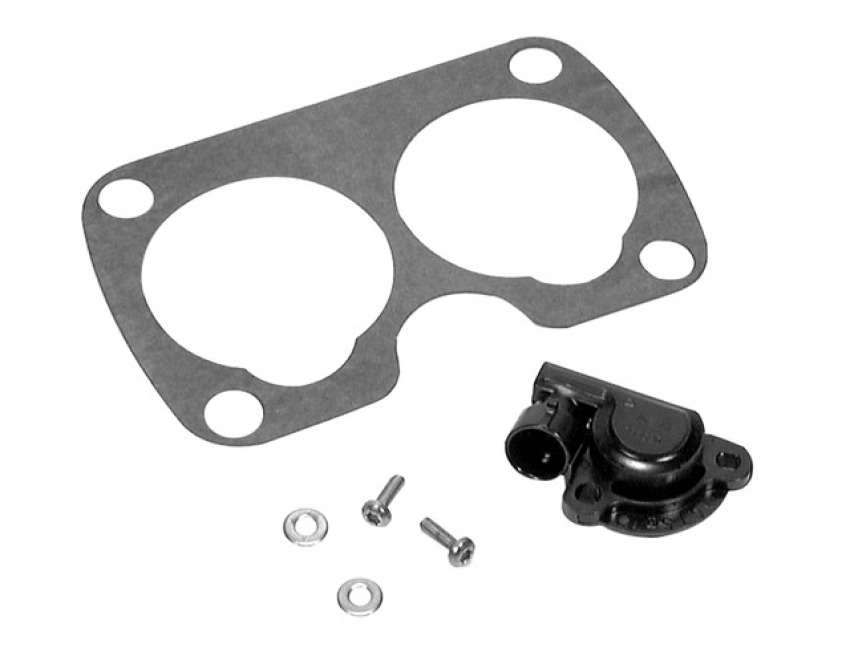

Genuine Mercury / Quicksilver Throttle Position Sensor Assembly. Part number 805226A1.

Throttle Position Sensor Assembly for MerCruiser gasoline inboard engines. This sensor monitors throttle blade position and reports data to the engine control module to optimize fuel delivery and ignition timing.

Direct replacement for original factory throttle position sensor assemblies on EFI-equipped MerCruiser engines.

Fits:

  • 4.3L EFI (GEN+) TBI GM 262 V-6 (S/N 0L012009–0M322780)
  • 5.0L EFI GM 305 V-8 (S/N 0L012052–0M299999)
  • 5.7L ALPHA EFI (TBI) GM 350 V-8 (S/N 0F355305–0F752389)
  • 5.7L BRAVO EFI (TBI) GM 350 V-8 (S/N 0F225560–0F752399)
  • 5.7L EFI GM 350 V-8 (S/N 0L010035–0M299999)
  • 5.7L EFI (2 BBL.-TBI) GM 350 V-8 (S/N 0F752400–0K999999)
  • 5.7L EFI (GEN+) REPOWER PLUS GM 350 V-8 (S/N ALL & Up)
  • 5.7L EFI MIE GM 350 V-8 (S/N 0K040300–0K261160)
  • 5.7LX BRAVO EFI (GEN+) GM 350 V-8 (S/N 0F800300–0K001508; 0K001509 & Up)
  • 5.7LX EFI (4 BBL.-TBI) GM 350 V-8 (S/N 0F752400–0K999999)
  • 7.4L MIE MPI (LH) GEN. V GM 454 V-8 (S/N 0F563052–0F820103)
  • 7.4L MIE MPI (LH) GEN. VI GM 454 V-8 (S/N 0F820104–0K999999)
  • 7.4L TBI MIE (LH) GEN. VI GM 454 V-8 (S/N 0F874815–0K999999)
  • 7.4LX BRAVO (MPI)(GEN. V) GM 454 V-8 (S/N 0F602010–0F801999)
  • 7.4LX BRAVO (MPI)(GEN. VI) GM 454 V-8 (S/N 0F802000–0K999999)
  • 7.4LX BRAVO (TBI)(GEN. VI) GM 454 V-8 (S/N 0F820000–0K999999)
  • 8.2L MIE MPI (GEN. VI) GM 502 V-8 (S/N 0L002450–0L674200)
  • 8.2L MIE MPI (LH) GEN. VI GM 502 V-8 (S/N 0F819620–0K999999)
  • 262 MAG (TBI)(GEN+) (S/N 0F803800–0K999999)
  • 350 MAG. ALPHA EFI GM 350 V-8 (S/N 0F800300–0K001508; 0K001509 & Up)
  • 350 MAG. BRAVO MPI GM 350 V-8 (S/N 0F415189–0F601999)
  • 350 MAG. BRAVO MPI GM 350 V-8 (S/N 0F602000–0K001500; 0K001501 & Up)
  • 350 MAG. EFI SKI (GEN+) GM 350 V-8 (S/N 0F820707–0K999999)
  • 350 MAG. EFI SKI (TBI) GM 350 V-8 (S/N 0F215561–0F820706)
  • 350 MAG. MPI SKI GM 350 V-8 (S/N 0F350583–0F799999)
  • 454 EFI (GEN. V) GM 454 V-8 (S/N 0F115700–0F802349)
  • 454 MAG MPI BRAVO (GEN VI) GM 454 V-8 (S/N 0F802350–0K999999; 0L010029–0L058399; 0L085400–0M024999)
  • 454 MAG. MPI (SKI) GEN. VI GM 454 V-8 (S/N 0F820100–0K999999)
  • 454 MAG. MPI HORIZON (GEN. VI) GM 454 V-8 (S/N 0L002200–0L674000)
  • 502 EFI (GEN. V) GM 502 V-8 (S/N 0D840650–0F802599)
  • 502 MAG MPI BRAVO (GEN VI) GM 502 V-8 (S/N 0L017000–0L085432)
  • 502 MAG. MPI (GEN VI) GM 502 V-8 (S/N 0F802600–0K999999)
  • 502 MAG. MPI BRAVO (GEN VI) GM 502 V-8 (S/N 0L085433–0M024999)
  • 575 SCi (S/N 0L306696–0L307026; 0L601000–0L602090; 0M050000–0M053292; 0M900000–0M950526)

Specifications:

  • Weight: 0.003 kg
  • Boxed dimensions: 20.066×12.954×2.413 cm

Specification List

Type Sensor Weight 0.003 KG
