Mercury - Screw - Quicksilver - 10-88447

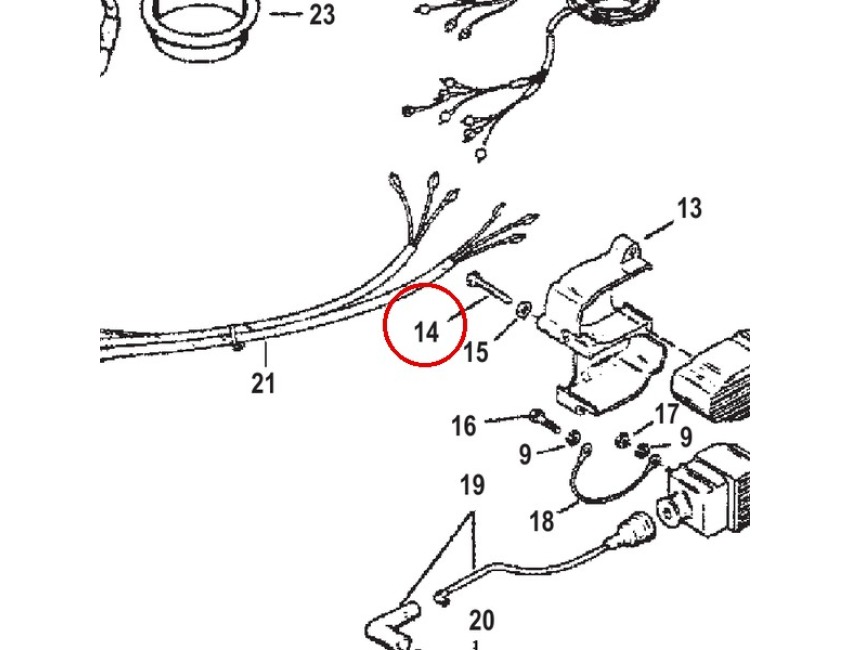

Genuine Mercury / Quicksilver Screw. Part number 10-88447.

Genuine Quicksilver replacement screw used in flywheel, starter motor, ignition coil, and wiring harness assemblies.

Supplied as a direct factory replacement to maintain correct assembly integrity on applicable Mercury outboard engines.

Also replaces / supersedes: 10-30173, 10-79592, 10-67449.

Fits:

• 2.5L (OFFSHORE) (S/N 0G610239–0G856999)
• 105 JET (S/N 0D082000–0G760299)
• 140 JET (S/N 0D082000–0T178499)
• 150 HP PRO MAX/SUPER MAG (S/N 0D935000–0G610049)
• 150/200 HP PRO MAX/SUPER MAG (S/N 0G610050–0G856999)
• 200 EFI PRO MAX/SUPER MAG (S/N 0D935000–0G610079; 0G857000–0G858150)
• 225 EFI PRO MAX/SUPER MAG (S/N 0G610104–0T429939)
• S2000 (S/N 0D030200 & Up)
• S3000 (S/N 0D181027–0T105373)
• SST 120 (S/N 0D030200 & Up)
• V-135 (S/N 0A904646–0C100860; 0C239553–0T178499)
• V-140 (INTERNATIONAL) (S/N 0T178500–1B226999)
• V-150 (S/N 0A904646–0C100860; 0C239553–1B226999; 4868998–0A904645)
• V-150 HP (S/N 0G303046–0T408999)
• V-150 HP (MAG) (S/N 0D082000–0G303045)
• V-150 HP XRI (S/N 0D082000–0G303045)
• V-150 Magnum (S/N 5600162–0A904645)
• V-150 Marathon (S/N 5600162–0A904645)
• V-150 Work (S/N 4868998–0A904645)
• V-150-XR-2 (S/N 4868998–0A904645)
• V-1500 (S/N 4868998–0A904645)
• V-175 (S/N 0C239553–0G960499; 4301235–0C100860; 8058870–0B384939)
• V-175 (MAG) (S/N 0D082000–0G303045)
• V-175 (SKI) (S/N 0D082000–0G303045)
• V-175 HP (S/N 0G303046–0T408999)
• V-175 MAGNUM (S/N 0D000750–0D081999)
• V-175XRI (S/N 0D000750–0G303045)
• V-200 (S/N 0C100861–0C999999; 0D082000–1B226999; 5239232–0C100860)
• V-200 (2.5L) 1991 ONLY (S/N 0C291520–0D081999)
• V-200 (MAG) (S/N 0D082000–0G303045)
• V-200XRI (S/N 0C291520–0G303045)
• V-220 Laser (S/N 1B516994–2B091896)
• XR-4 / MAGNUM II (S/N 0B242885–0C100860; 0C239553–0D081999)
• XR-6 / MAGNUM III (S/N 0D082000–1B226999)

Specifications:

• Weight: 0.006 kg
• Boxed dimensions: 5.842×3.048×1.524 cm
