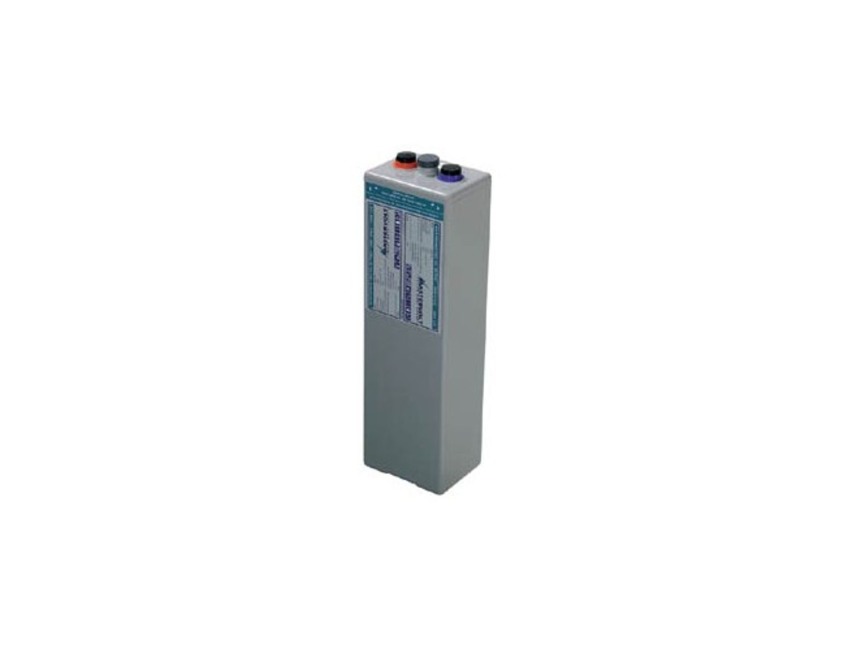

Mastervolt SV 500 2V GEL Battery - 68000500
Click to enlarge
Codex
MPN 68000500
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
Mastervolt SV 500 2V GEL Battery - 68000500
Part No: 68000500
The Mastervolt 68000500 Gel battery boasts a very long lifespan along with fast recharge and deep discharging, making it ideal for use in large systems with intensive use. It can provide a high number of charge / discharge cycles and is built robustly to protect the internal components. The cell is designed to be used in series to create a 12 volt battery (6 units required) or 24 volt battery (12 units required).
General specifications
Nominal battery voltage: 2V
Nominal battery capacity C10: 500 Ah
Maximum charge current: 250 A
Terminals: F-M8
Maximum outer dimensions (including terminals/grip handles), Length: 147mm x Width: 208mm x Height: 515mm (5.8" × 8.2" × 20.3")
Weight: 35 kg (77.2 lb)
Capacity - 500 Ah
Style - Gel
Brand - Mastervolt
Application - Domestic
Voltage - 2V
Height - 515mm (20.3")
Width - 208mm (8.2")
Depth - 147mm (5.8")
Length - 147mm (5.8")
Weight - 35 kg (20.3")
Specification List
| Type | GEL Battery |
|---|
