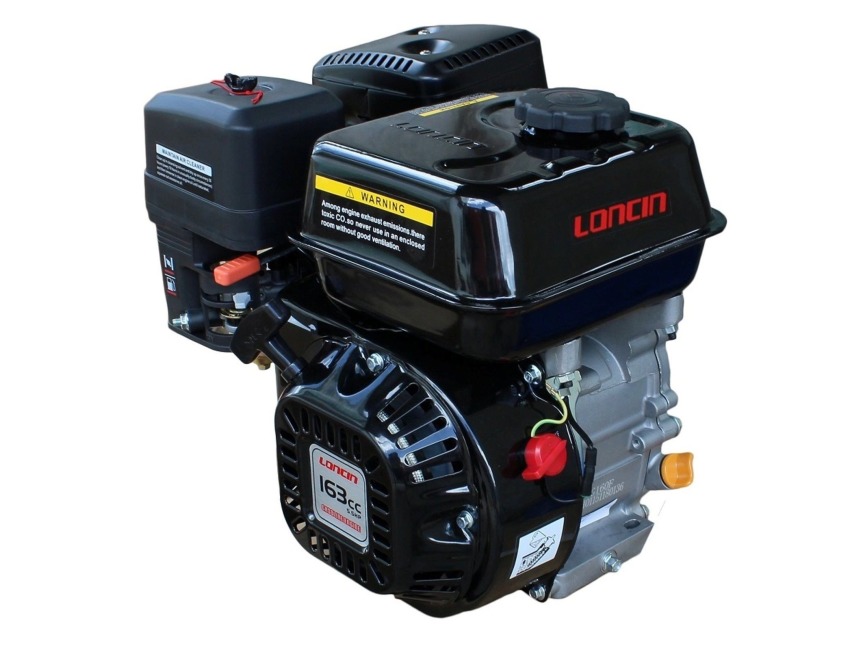

Loncin G160F-P 5.5Hp 3/4" Shaft Stationary Engine for Go Kart replaces Honda GX160

Click to enlarge

Code1

MPN G160F-P

£189.99

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

Heavy item - Please contact us before clicking to buy if you are in Northern Ireland, Republic of Ireland, Channel Islands, Isle of Wight, Scilly Isles, Scottish Highlands or Scottish Islands

Loncin 5.5hp Stationary Engine - replaces Honda GX160

Features:
4 stroke petrol engine runs on Unleaded petrol
Easy recoil pull start system
Forged crankshaft
Low Oil Alert shuts engine down if oil level is dangerously low
Note - this engine replaces the GX160 3/4" parallel output shaft

Specifications:
Model: G160F-P
Type: 4 Stroke
Fuel Type: Unleaded Petrol
Starting Method: Recoil Pull Start
Piston Displacement: 163cc
Bore x Stroke: 68mm x 45mm
Compression ratio:8.51
Gross Power: 5.5Hp (4.1kW) / 3600rpm
Net Power: 4.8Hp (6.6kW) / 3600rpm
Rated speed: 3600rpm
Idle Speed: 1450rpm +- 150
Output shaft size: 3/4" parallel with keyway
Ignition system: Transistorized, magneto
Fuel Sytem: Carburettor
Lubrication System:Splash
Speed Governor: Centrifugal mass
Air Filter: Dual element,semi-dry (i.e. oil dampened)
Oil capacity: 0.6 L0.13gal)
Fuel tank capacity: 3.6 L
Noise Level @ 7m: 70dBA
Dimensions(L x W x H): 362 × 312 × 335mm
Net Weight: 15Kg

Specification List

Type Portable engine /repower Replacement for Honda GX160 with 3/4" Output Shaft
Gross Power 5.5Hp (4.1kW) @ 3600 rpm Net Power 4.8Hp (3.6kW) @ 3600 rpm
Output Shaft Size 3/4" parallel, with keyway Reference OE/OEM Number GX160
