Genuine Yamaha Carb rebuild kit 9.9F 15F - 63V-W0093-01

Click to enlarge

Code185669242932

MPN 63V-W0093-01-00

£58.33

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

Genuine Yamaha - Carburetor rebuild kit

Part Number : 63V-W0093-01

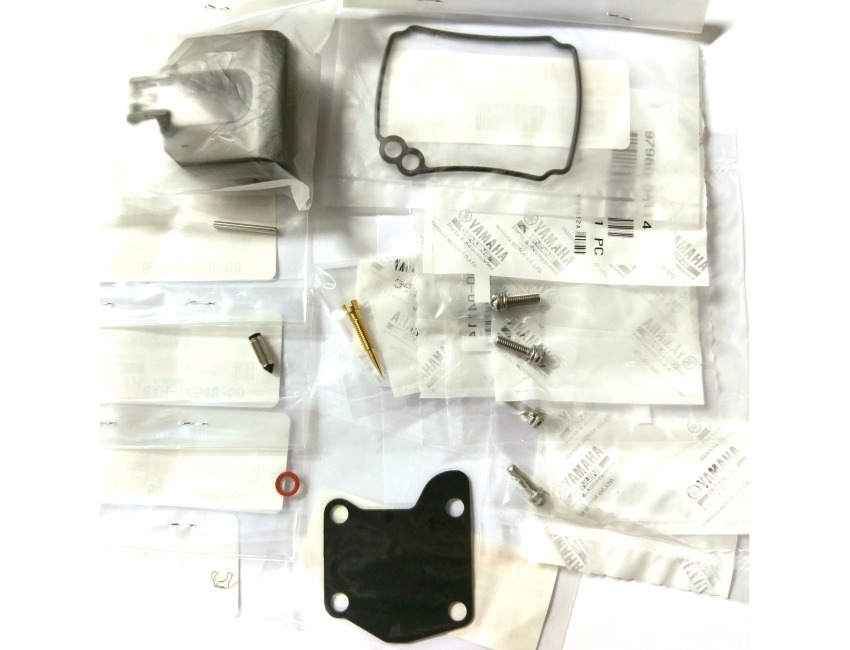

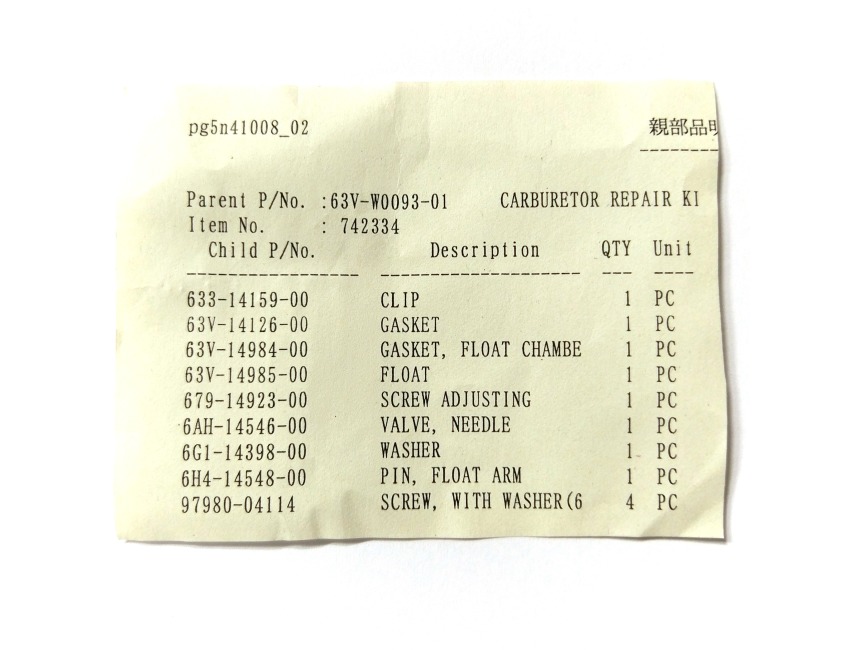

Kit contents:

Qty: Part #: Part Description:
1x 679-14923-00 SCREW, PILOT
1x 63V-14126-00 GASKET
1x 63V-14984-00 GASKET, FLOAT CHAMBER
4x 98580-04014 SCREW, PAN HEAD
1x 6G1-14398-00 WASHER
1x 63V-14985-00 FLOAT
1x 6G1-14546-01 VALVE, NEEDLE
1x 676-14186-00 PIN, FLOAT
1x 633-14159-00 CLIP
1x 6H4-14548-00 PIN, FLOAT ARM

Fits the following models:

9.9F / 15F

If unsure please contact us with the model and serial number of your outboard.

Specification List

Sub-Type - Weight -
Country of Origin Japan Tariff Code 8409910090
Type Repair kit - Carburetor
