BEP - BATTERY SWITCH Pro Installer 1/2/BOTH/OFF EZ MOUNT Surface Mount 48V MAX. 400A Cont. - 771-S-EZ

Click to enlarge

Codex

MPN BEP-771SEZ

Was £83.35
Now: £60.55

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

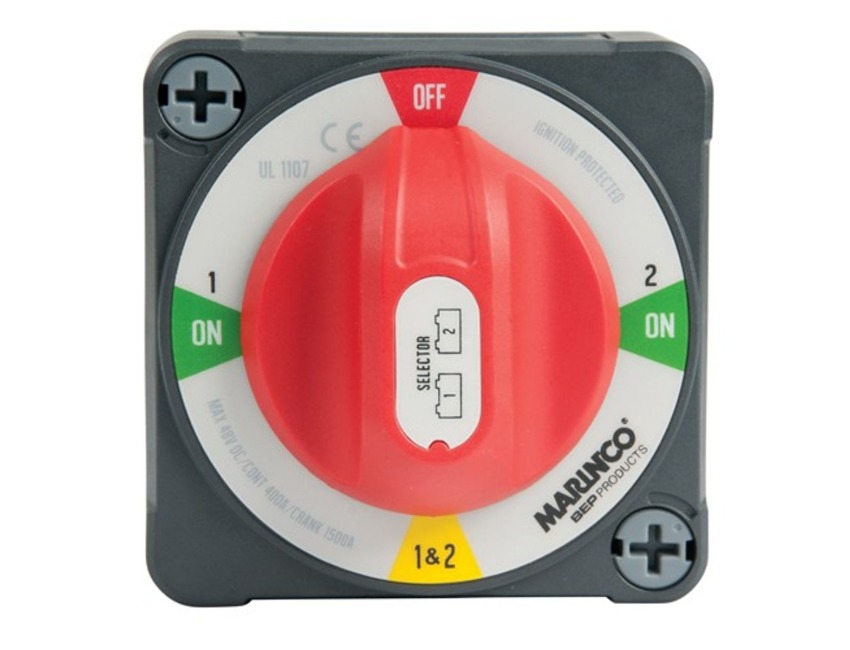

BEP - BATTERY SWITCH PRO INSTALLER 1/2/BOTH/OFF EZ MOUNT SURFACE MOUNT ONLY 48V MAX. 400A CONTINUOUS

Part No: BEP-771SEZ

The Pro-Installer EZ Mount battery switches make installation both quick and easy. Upward facing studs on the switch base allow direct access to cable connections. The front actuator knob and facia can then be fitted at any 90 degree rotated position to suit the cable runs in and out of the switch. These switches can also be used with Pro-Installer link bars to create cluster configurations to other Pro-Installer products. 771-S-EZ-Selector Switch with 1-2-Both-Off operation and 3× 10mm (3/8") studs.

Surface mount installation

Connects to other Pro-Installer products using link bars

Stainless steel nuts & washers

Strong UV stabilized fibre reinforced plastics

IP66 rated

Tested to UL1107 Ignition Protection, CE Marked

Specifications:

Rating Continuous: 400A DC. Intermittent: 600A DC. Cranking: 1500A DC

Voltage: 48V DC for 12-48V Systems

Dimensions: (LxWxH) 98 × 98 × 93mm (3.85" × 3.85" × 3.62")

Specification List

Sub-Type - Weight -
Country of Origin NZ Tariff Code 85365080
Type BATTERY MANAGEMENT / BATTERY SWITCHES
