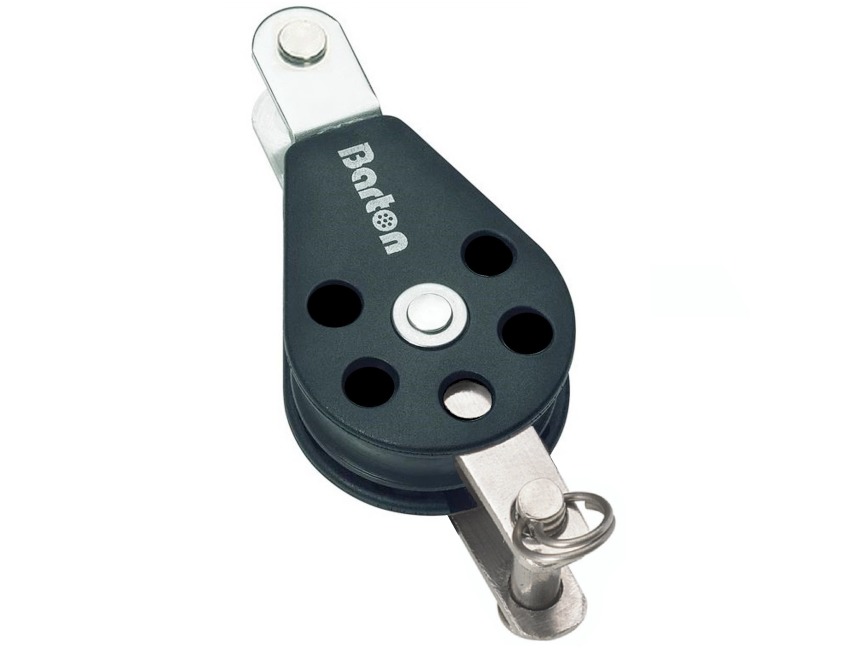

Barton Marine Size 2 Single Clevis Pin and Becket - 35mm - Plain bearing - N02091
Click to enlarge
Code165252990128
MPN BAN02091
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
Barton Size 2 Single clevis pin and becket
Part number: N02091
Plain Bearing Block - Have a precision moulded Acetal Sheave running a large diameter brass centre bearing ensuring free running under the highest of loads.
A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.
Specification
Metric (Imperial)
Sheave Size: 35mm x 12mm (1 3 /8 × 7/16")
Maximum Rope Diameter 8mm ( 5 /16")
Breaking Load 740Kg (1630 lbs)
Safe Working Load 370Kg (815 lbs)
Length 65 mm
Weight 46 g
Specification List
| Type | Single clevis pin with becket | Manufacturer | Barton Marine |
|---|---|---|---|
| Sheave size | 35mm x 12mm (1 3 /8 x 7/16") |
