Barton - Single - Variloc - Ball Bearing Block S7 - N17180

Click to enlarge

Codex

MPN BAN17180

Was £95.8
Now: £74.13

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

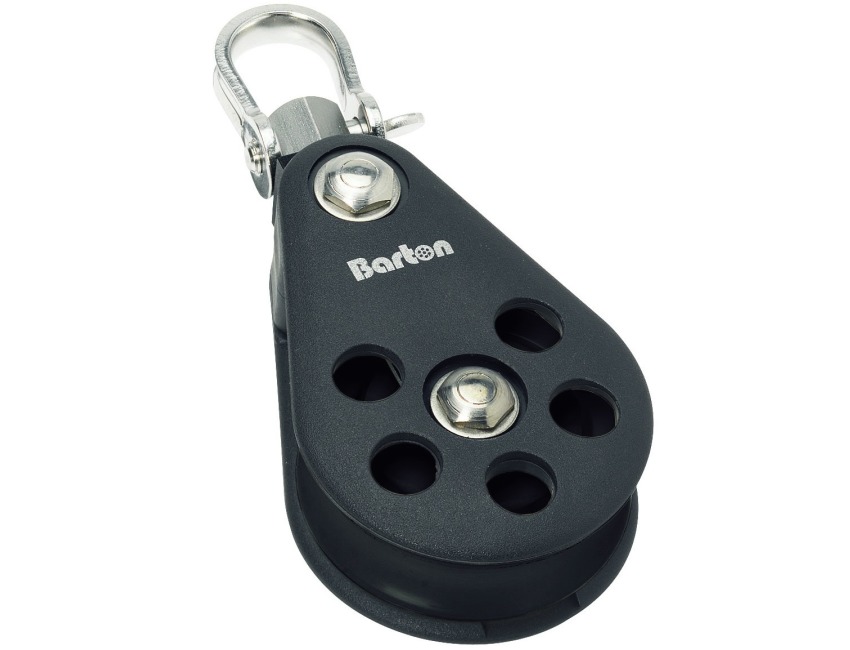

Barton S7 Ball Bearing Block Single - Variloc

Part No: N17180

The Variloc Multi Head allows swivel to be locked at 30 degree positions in relation to sheave. Inverting the lock converts to swivel mode. Supplied with screw pin shackle.

Barton Ball Bearing Blocks feature a unique super-low friction ball race system, comprising acetal sheaves and delrin ball bearings running on a large diameter centre boss.
The Barton ball bearing design fits in more load-bearing balls, and consequently promotes extremely low friction performance, even under high loads.

A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.

Specification:
Metric (Imperial)
Sheave Size: Single 70mm x 20mm (2 3 /4 x 3/4")
Maximum Rope Diameter: 14mm ( 9 /16")
Breaking Load: 2500Kg (5500 lbs)
Max Rolling Load: 1250Kg (2750 lbs)
Length: 163mm
Weight: 317g

Specification List

Type Block Sub-Type Ball Bearing Block
Weight 317g Country of Origin GB
Tariff Code 84835080
