Description

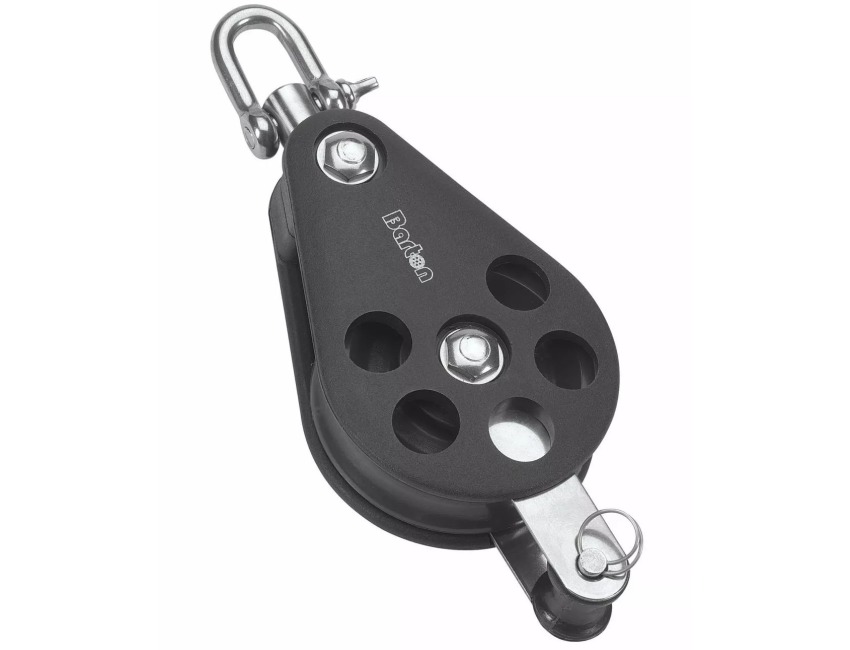

Barton S7 Ball Bearing Block Single - Swivel + Becket
Part No: N17131
Barton Ball Bearing Blocks feature a unique super-low friction ball race system, comprising acetal sheaves and delrin ball bearings running on a large diameter centre boss.
The Barton ball bearing design fits in more load-bearing balls, and consequently promotes extremely low friction performance, even under high loads.
A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.
Specification:
Metric (Imperial)
Sheave Size: Single 70mm x 20mm (2 3 /4 x 3/4")
Maximum Rope Diameter: 14mm ( 9 /16")
Breaking Load: 2500Kg (5500 lbs)
Max Rolling Load: 1250Kg (2750 lbs)
Length: 197mm
Weight: 382g
Specification List
| Type | Block | Sub-Type | Ball Bearing Block |
|---|---|---|---|
| Weight | 382g | Country of Origin | GB |
| Tariff Code | 84835080 |
