Barton - Fiddle - Swivel - Ball Bearing Block S2 - N12430

Click to enlarge

Codex

MPN BAN12430

Was £35.76
Now: £29.98

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

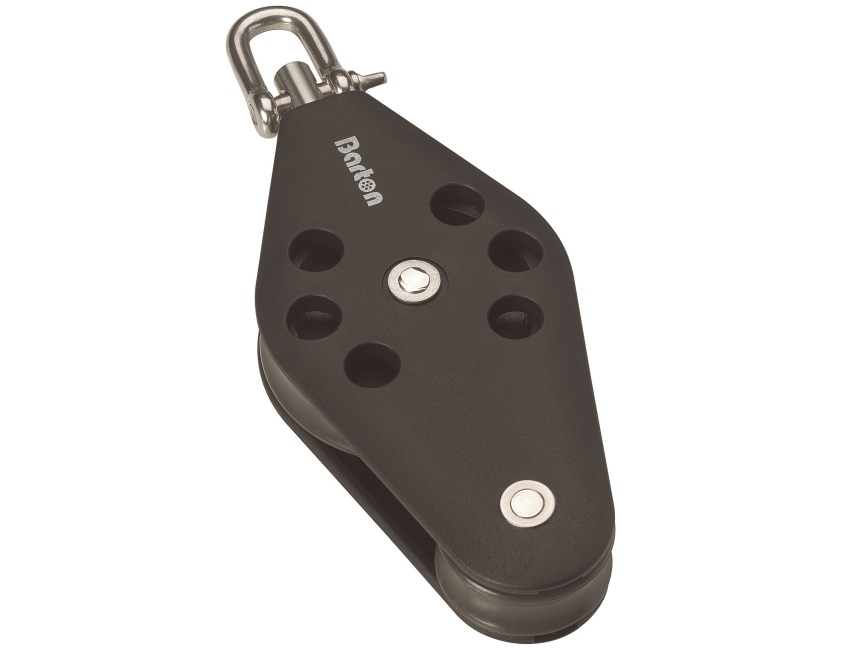

Barton S2 Ball Bearing Block Fiddle - Swivel

Part No: N12430

Barton Ball Bearing Blocks feature a unique super-low friction ball race system, comprising acetal sheaves and delrin ball bearings running on a large diameter centre boss.
The Barton ball bearing design fits in more load-bearing balls, and consequently promotes extremely low friction performance, even under high loads.

A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.

Specification:
Metric (Imperial)
Sheave Size: Fiddle 30/45mm x 12mm (1 3 /16 × 1 3/4" × 7/16")
Maximum Rope Diameter: 8mm ( 5 /16")
Breaking Load: 740Kg (1630 lbs)
Safe Working Load: 370Kg (815 lbs)
Length: 134mm
Weight: 95g

Specification List

Type Block Sub-Type Ball Bearing Block
Weight 95g Country of Origin GB
Tariff Code 84835080
