Talamex - VOLTAGE METER & AMP 4.5-30V & 0-15A METER SWITCH MOUNT - 14.504.082
Click to enlarge
Codex
MPN 14.504.082
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

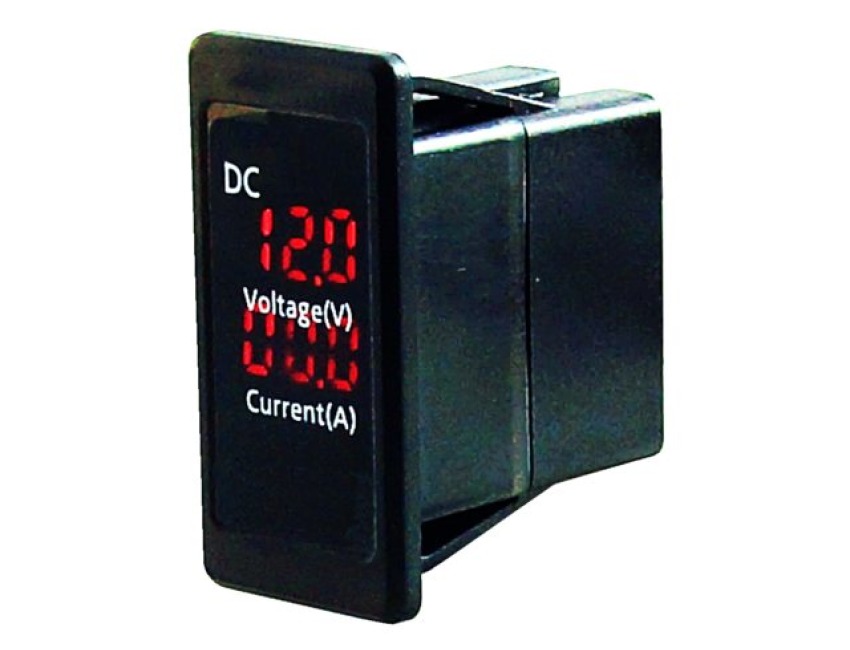

Compact digital volt- & current gauge which displays the DC voltage and current use of a battery on board. The casing is completely sealed making it IP67 water resistance and suitable for outdoor mounting. Voltmeter has a standard switch mount size which makes it easy to integrate the switch into existing configurations. The decimal-dot is variable making it 1 digit jumps at voltages lower than 10V for exact indication. Protected against polarity reversal.
• Voltage 4,5-30V DC
• Amperage 0-15A DC
• Consumption < 30mA
• Overall 48 × 24.2mm
• Cut-out 36,83 × 21,08mm
• Built In depth 44,71mm
• 1 1/8" switchmount
Specification List
| Type | ELECTRICAL EQUIPMENT | Sub-Type | - |
|---|---|---|---|
| Weight | - | Country of Origin | TW |
| Tariff Code | 90283011 |
