Talamex - SWITCHPANEL ANTRACITE WITH VOLTAGE GAUGE 12/24V - 14.576.008
Click to enlarge
Codex
MPN 14.576.008
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

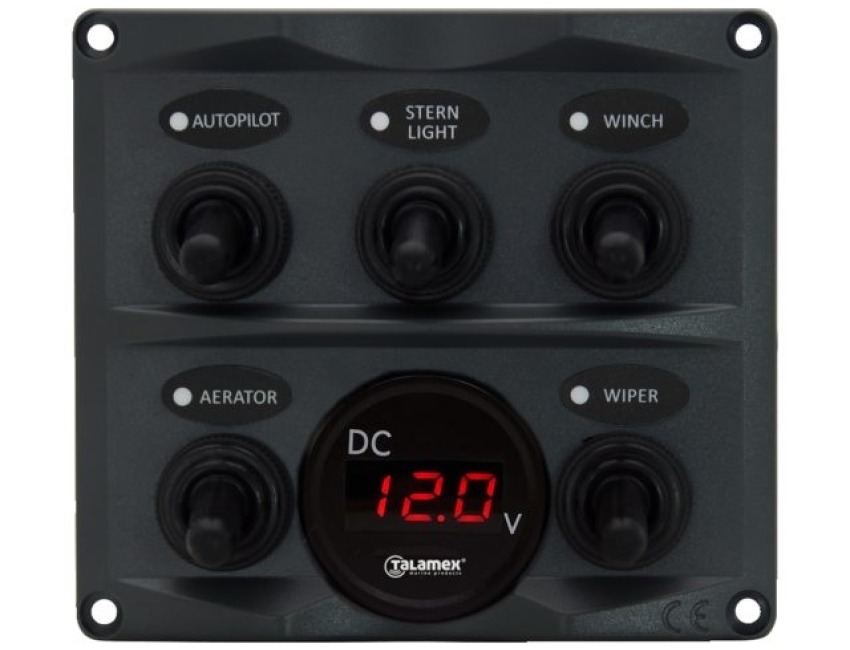

Switch panel for mounting both inside and outside. By the voltmeter with IP66 value and the waterproof switches, this switch panel is also suitable for outdoor in, for example, a dashboard mount. The switch panel is equipped with a clear LED indicator per switch which is processed at the back of the sticker. This makes it clear to see which switch is on or off.
Specifications:
• 5 switches + voltmeter (specifications voltmeter see art.nr. 14.504.076)
• Water Resistance: IP66
• Compact design: WxH 107 × 95mm; cut out size WxH 93 × 76mm
• Mounting depth: 95mm
• Input: 12V & 24V
• Max. Ampere switch: 15A@DC 12V/10A@DC24V
• ATP in-line fuse 15A per 2 switches
• Comes with 28 stickers
Specification List
| Type | ELECTRICAL EQUIPMENT | Sub-Type | - |
|---|---|---|---|
| Weight | - | Country of Origin | TW |
| Tariff Code | 85365019 |
