Description

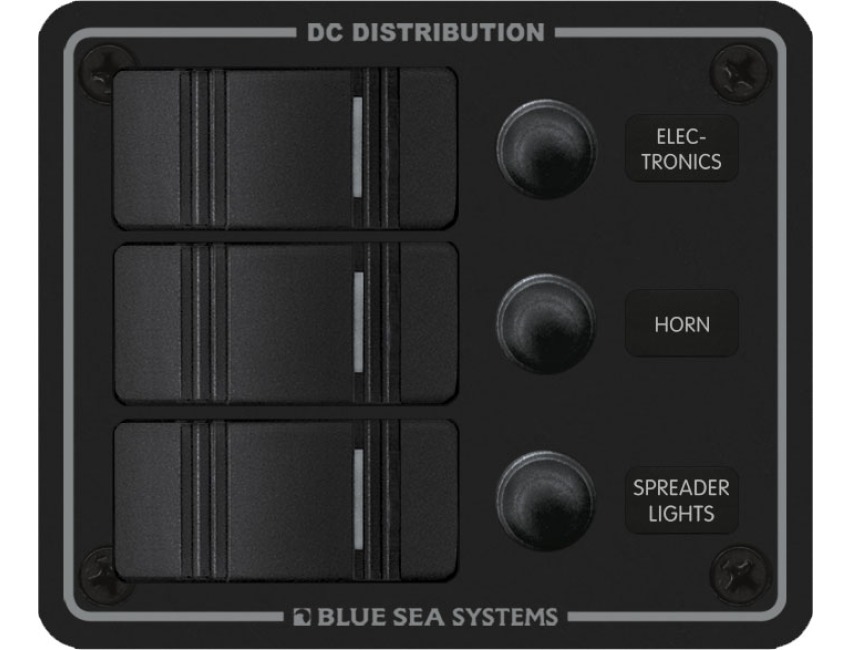

Blue Sea Water Resistant Circuit Breaker Panel 3 Position-Black
Part No. 8374Designed for flybridge and open cockpit applications
Panel front is rated IP66—Protected against powerful water jets
Ignition protected—safe for installation aboard gasoline powered boats
ON-OFF Contura Switches
ON indicating LEDs embedded in switch
Watertight mounting gasket
Push Button Reset-Only circuit breakers with waterproof boots
Specifications:
Weatherproof - Water Resistant
Positions - 3
Nominal Voltage - 12V DC24V DC
Panel Cumulative Rating - 45A
Switch Rating - 20A @ 12V DC15A @ 24V DC
Height - 3.75in (95.25 mm)
Width - 4.50in (114.3 mm)
Depth - 3.25in (82.55 mm)
Weight - 0.75lb (0.34 kg)
Specification List
| Weight | 0.75lb (0.34 kg) | Country of Origin | USA |
|---|---|---|---|
| Tariff Code | 85371000 | Type | DC Panels |
| Sub-Type | Water-Resistant |
