Blue Sea - Traditional Metal DC Panel - 8 Positions - PN. 8023

Click to enlarge

MPN 8023

£266.87

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

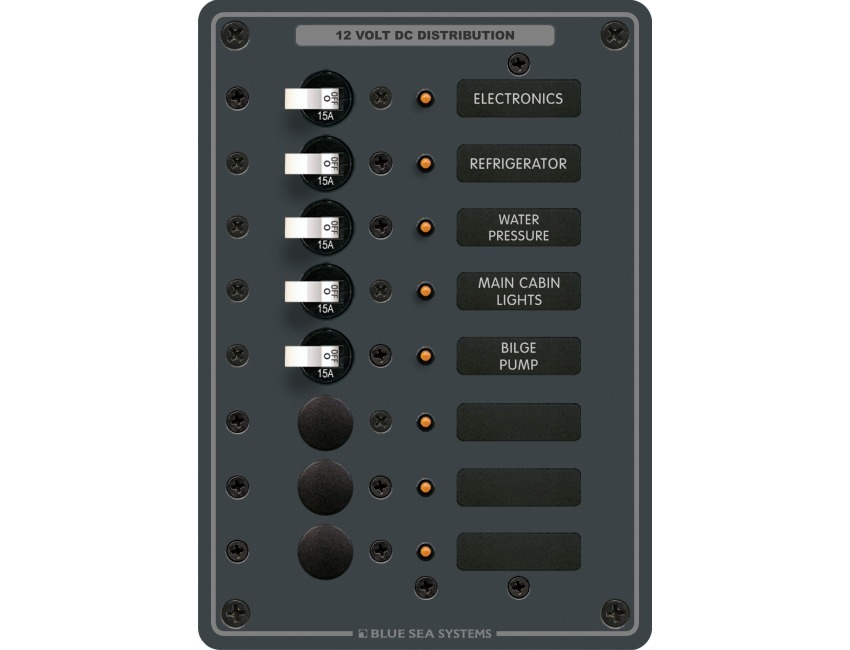

Blue Sea Traditional Metal DC Panel - 8 Positions (5 pre-populated)

Part No. 8023

All positive, negative and grounding buses installed, fully pre-wired
Panels with meters include toggle switch for mounting up to 3 battery banks
All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
All circuit label positions are backlit on standard panels - No kit required
"ON" indicating LEDs installed in all circuit positions

Specifications:
Positions - 8
Nominal Voltage - 12V DC / 24V DC
Maximum Amperage - 100A
Height - 7.50in (190.5 mm)
Width - 5.25in (133.35 mm)
Weight - 1.95lb (0.88 kg)

Specification List

Weight 1.95lb (0.88 kg) Country of Origin USA
Tariff Code 85371000 Type DC Panels
Sub-Type Below-deck
