Blue Sea - Single Circuit ON-OFF with Locking Key - Red - PN. 6004
Click to enlarge
MPN 6004
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

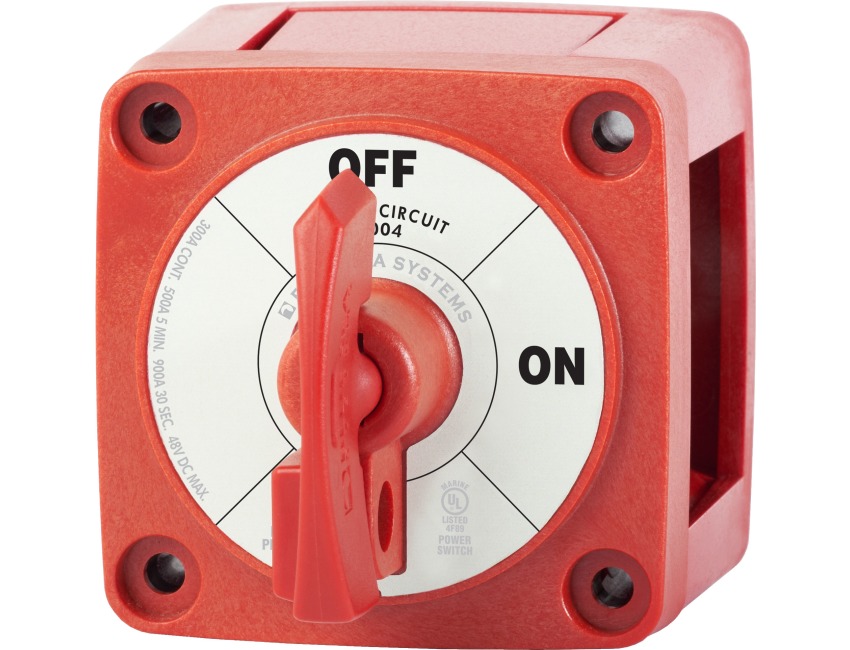

Blue Sea Single Circuit ON-OFF with Locking Key - Red
Part No. 6004300 Amps continuous rating for outboards and small gasoline or diesel engines
Tin-plated copper studs for maximum conductivity and corrosion resistance
Studs accept 3/8" (M10) ring terminals
7/8" (22 mm) stud length accepts multiple cable terminals
Blue Sea Systems one-piece terminal stud design never loosens over time
One-piece stainless flange nuts ensure safe and secure connections
Isolating cover protects rear contacts
Breakout tabs allow wire access in any direction
Specifications:
Switch Type - Single Circuit ON-OFF
Color - Red
Maximum Voltage - 48V DC
Stud Size - 3/8"
Continuous Rating - 300A
Intermittent Rating - 500A
Cranking Rating 30 sec - 900A
Stud Material - Tinned Copper
Stud Torque - 120 in-lb (13.56 Nm)
Weight - 0.65lb (0.29 kg)
Specification List
| Sub-Type | Manually operated | Weight | 0.65lb (0.29 kg) |
|---|---|---|---|
| Country of Origin | USA | Tariff Code | 85365090 |
| Type | Battery Switch |
