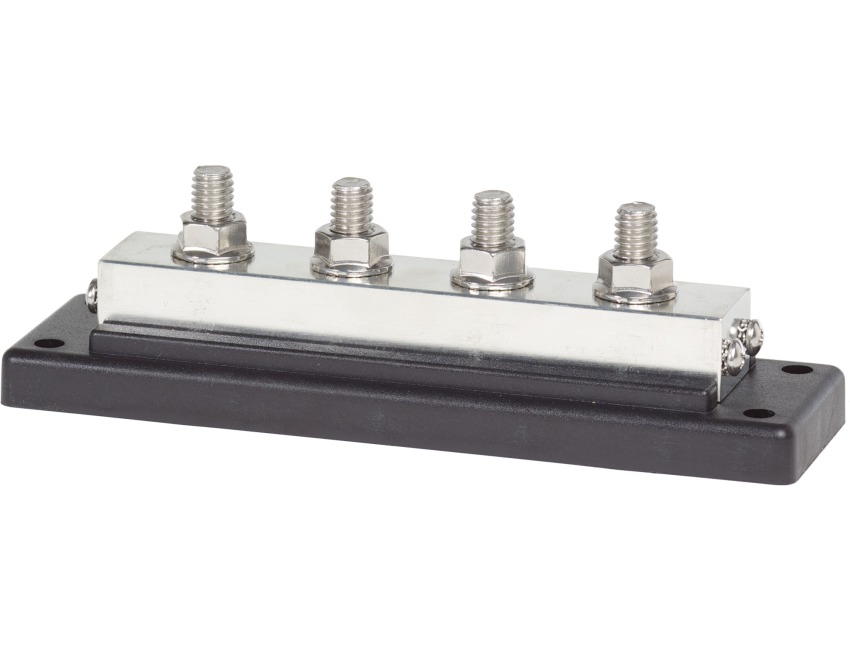

Blue Sea - PowerBar 600A BusBar - Four 3/8"-16 Studs - PN. 2104

Click to enlarge

MPN 2104

£120.46

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

Blue Sea PowerBar 600A BusBar - Four 3/8"-16 Studs

Part No. 2104



Specifications:
Maximum Voltage - 300V AC48V DC
Number of Terminal Studs - 4
Terminal Type - 3/8"-16 Stud
Terminal Stud Torque - 140 in-lb (15.82 Nm)
Continuous Rating - 545A AC600A DC
Base Material - UL 94-V0 Rated - Glass Reinforced Thermoplastics
Bus Material - Tin-Plated Copper CDA 110/UNS11000
Screw Terminal Torque - 15 in-lb (1.69 Nm)
Stud Torque - 140 in-lb (15.82 Nm)
Weight - 1.71lb (0.78 kg)

Specification List

Weight 1.71lb (0.78 kg) Country of Origin USA
Tariff Code 85369090 Type Bus Bars
Sub-Type -
