Blue Sea - e-Series On-Off Battery Switch With AFD - PN. 9004e

Click to enlarge

MPN 9004e

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description
Specification

Description

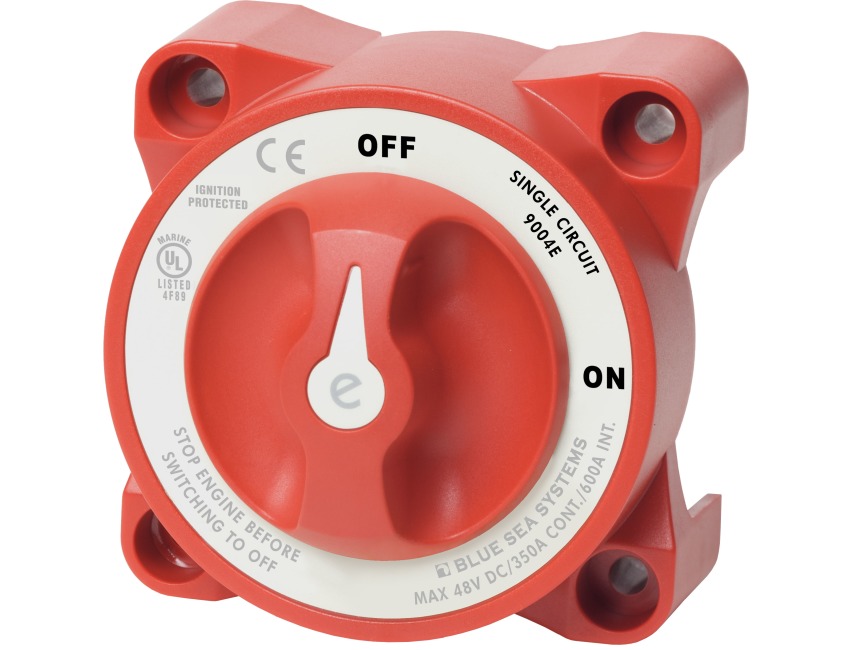

Blue Sea e-Series On-Off Battery Switch

Part No. 9004e

Switches a single battery to a single load group
Includes AFD (Alternator Field Disconnect)
Ignition protected—safe for installation aboard gasoline powered boats
Case design allows surface or rear panel mounting

Specifications:
Switch Type - Single Circuit ON-OFF
Color - Red
Switch Positions - 2
Battery Combine - No
Alternator Field Disconnect - Yes
Maximum Voltage - 48V DC
Terminal Stud Torque - 140 in-lb (15.82 Nm)
Continuous Rating - 350A
Intermittent Rating - 600A (5 min)
Cranking Rating 30 sec - 1200A
Battery Inputs - 1
Cable Clearance For 4/0 AWG Cables - 1.10in (27.94 mm)
Cable Size to Meet Ratings - 4/0 AWG (120mm²)
Mounting Holes - Accept 1/4" (M6) Screw
Stud Material - Tinned Copper
Terminal Stud Size - 3/8" - 16 (M10)
Weight - 0.95lb (0.43 kg)

Specification List

Sub-Type	Manually operated	Weight	0.95lb (0.43 kg)
Country of Origin	USA	Tariff Code	85365090
Type	Battery Switch
