Blue Sea - DC Panel - 13 Position - PN. 8068

Click to enlarge

MPN 8068

£674.16

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

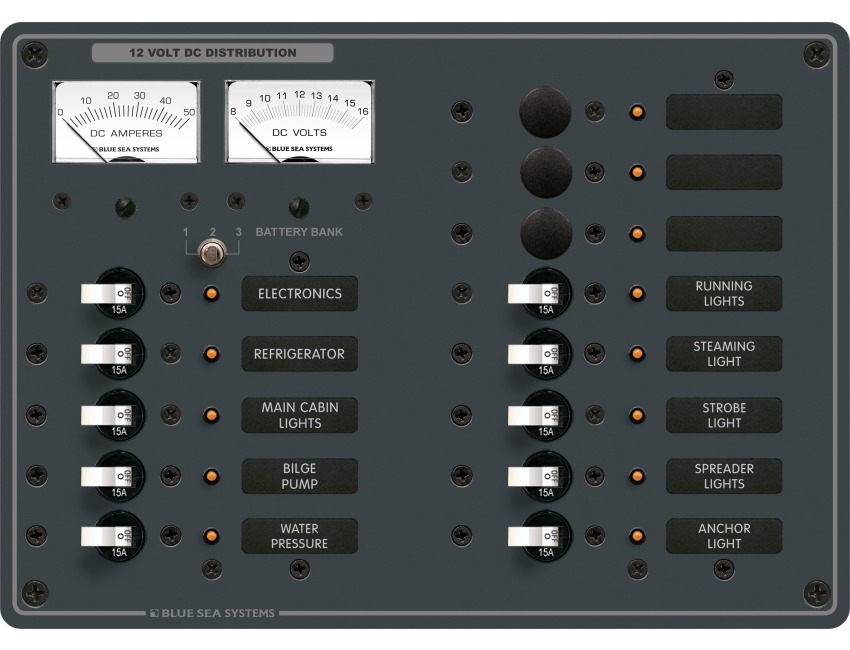

Blue Sea DC 13 Position

Part No. 8068

All positive, negative and grounding buses installed, fully pre-wired
Panels with meters include toggle switch for mounting up to 3 battery banks
All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
All circuit label positions are backlit on standard panels - No kit required
"ON" indicating LEDs installed in all circuit positions

Specifications:
Positions - 13
Nominal Voltage - 12V DC
Maximum Amperage - 50A
Height - 7.50in (190.5 mm)
Width - 10.50in (266.7 mm)
Depth - 3.00in (76.2 mm)
Weight - 4.20lb (1.91 kg)

Specification List

Weight 4.20lb (1.91 kg) Country of Origin USA
Tariff Code 85371000 Type DC Panels
Sub-Type Below-deck
