Blue Sea - Contura Water Resistant 12V DC Circuit Breaker Panel - White 8 Position - PN. 8271

Click to enlarge

MPN 8271

£282.69

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

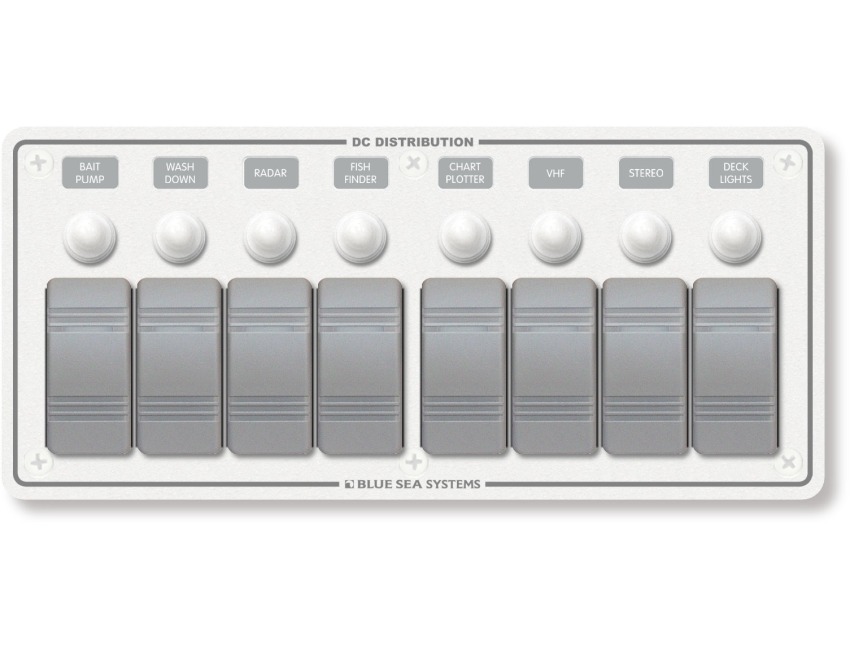

Blue Sea Contura Water Resistant 12V DC Circuit Breaker Panel - White 8 Position

Part No. 8271

Designed for flybridge and open cockpit applications
Panel front is rated IP66—Protected against powerful water jets
Ignition protected—safe for installation aboard gasoline powered boats
ON-OFF Contura Switches
ON indicating LEDs embedded in switch
Watertight mounting gasket
Push Button Reset-Only circuit breakers with waterproof boots

Specifications:
Weatherproof - Water Resistant
Positions - 8
Nominal Voltage - 12V DC24V DC
Panel Cumulative Rating - 90A
Switch Rating - 20A @ 12V DC15A @ 24V DC
Height - 4.25in (107.95 mm)
Width - 9.37in (238 mm)
Depth - 3.25in (82.55 mm)
Weight - 1.75lb (0.79 kg)

Specification List

Weight 1.75lb (0.79 kg) Country of Origin USA
Tariff Code 85371000 Type DC Panels
Sub-Type Water-Resistant
