Blue Sea - Contura Water Resistant 12V DC Circuit Breaker Panel - White 4 Position - PN. 8272
Click to enlarge
MPN 8272
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

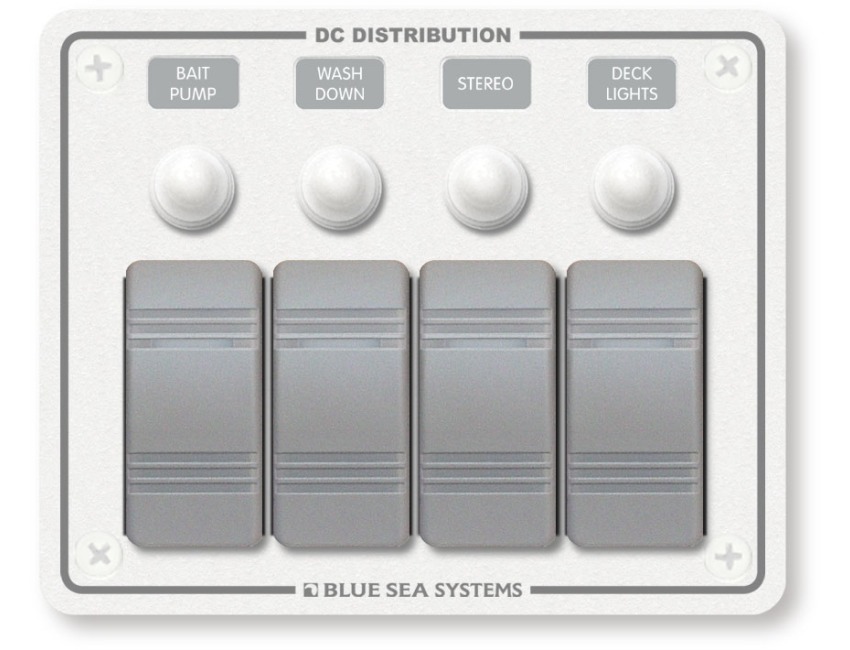

Blue Sea Contura Water Resistant 12V DC Circuit Breaker Panel - White 4 Position
Part No. 8272Designed for flybridge and open cockpit applications
Panel front is rated IP66—Protected against powerful water jets
Ignition protected—safe for installation aboard gasoline powered boats
ON-OFF Contura Switches
ON indicating LEDs embedded in switch
Watertight mounting gasket
Push Button Reset-Only circuit breakers with waterproof boots
Specifications:
Weatherproof - Water Resistant
Positions - 4
Nominal Voltage - 12V DC24V DC
Panel Cumulative Rating - 45A
Switch Rating - 20A @ 12V DC15A @ 24V DC
Height - 4.25in (107.95 mm)
Width - 5.25in (133.35 mm)
Depth - 3.25in (82.55 mm)
Weight - 0.90lb (0.41 kg)
Specification List
| Weight | 0.90lb (0.41 kg) | Country of Origin | USA |
|---|---|---|---|
| Tariff Code | 85371000 | Type | DC Panels |
| Sub-Type | Water-Resistant |
