Blue Sea - Common 150A BusBar - 20 Gang with Cover - PN. 2312
Click to enlarge
MPN 2312
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

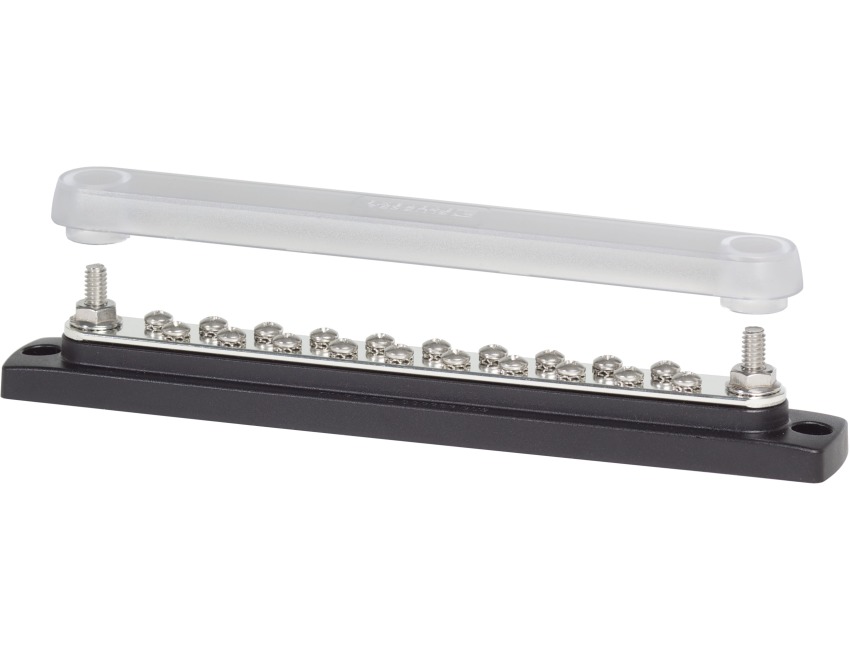

Blue Sea Common 150A BusBar - 20 Gang with Cover
Part No. 2312The industry standard busbar for positive distribution
The industry standard busbar for the collection of negative or AC ground circuits
Specifications:
Maximum Voltage - 300V AC
48V DC
Number of Screw Terminals - 20
Number of Terminal Studs - 2
Terminal Type - 1/4" Stud
#8-32 Screw
Continuous Rating - 130A AC
150A DC
Base Material - UL 94-V0 Rated - Glass Reinforced Thermoplastics
Bus Material - Tin-Plated Copper CDA 110 / UNS 11000
Cover Material - Clear Polycarbonate
Screw Terminal Torque - 15 in-lb (1.69 Nm)
Stud Torque - 60 in-lb (6.78 Nm)
Weight - 0.57lb (0.26 kg)
Specification List
| Weight | 0.57lb (0.26 kg) | Country of Origin | USA |
|---|---|---|---|
| Tariff Code | 85369090 | Type | Bus Bars |
| Sub-Type | - |
