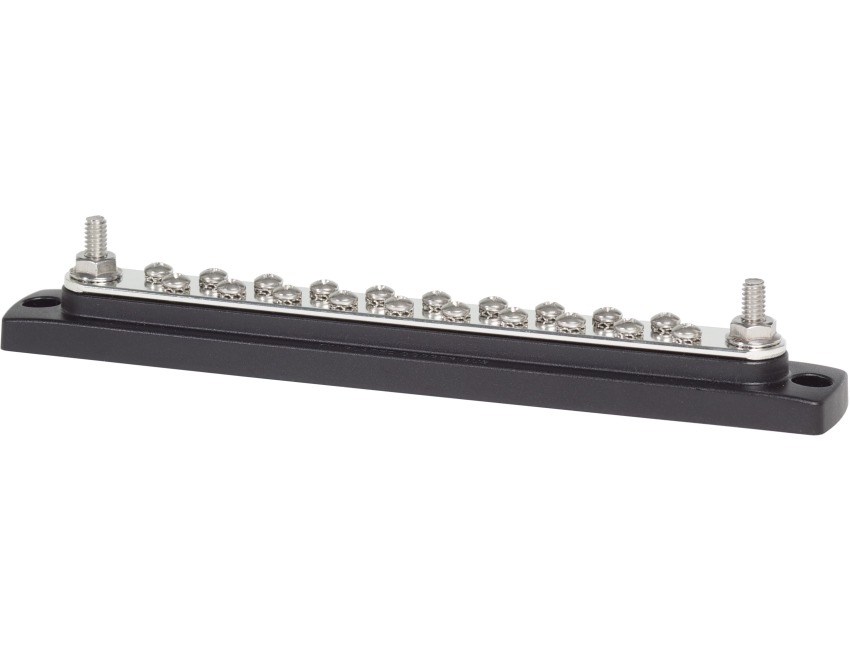

Blue Sea - Common 150A BusBar - 20 Gang - PN. 2302

Click to enlarge

MPN 2302

£32.51

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

Blue Sea Common 150A BusBar - 20 Gang

Part No. 2302

The industry standard busbar for positive distribution
The industry standard busbar for the collection of negative or AC ground circuits

Specifications:
Maximum Voltage - 300V AC48V DC
Number of Screw Terminals - 20
Number of Terminal Studs - 2
Terminal Type - 1/4" Stud#8-32 Screw
Continuous Rating - 130A AC150A DC
Base Material - UL 94-V0 Rated - Glass Reinforced Thermoplastics
Bus Material - Tin-Plated Copper CDA 110 / UNS 11000
Screw Terminal Torque - 15 in-lb (1.69 Nm)
Stud Torque - 60 in-lb (6.78 Nm)
Weight - 0.53lb (0.24 kg)

Specification List

Weight 0.53lb (0.24 kg) Country of Origin USA
Tariff Code 85369090 Type Bus Bars
Sub-Type -
