Blue Sea - Common 100A Mini BusBar - 4 Gang - PN. 2305

Click to enlarge

MPN 2305

£18.33

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

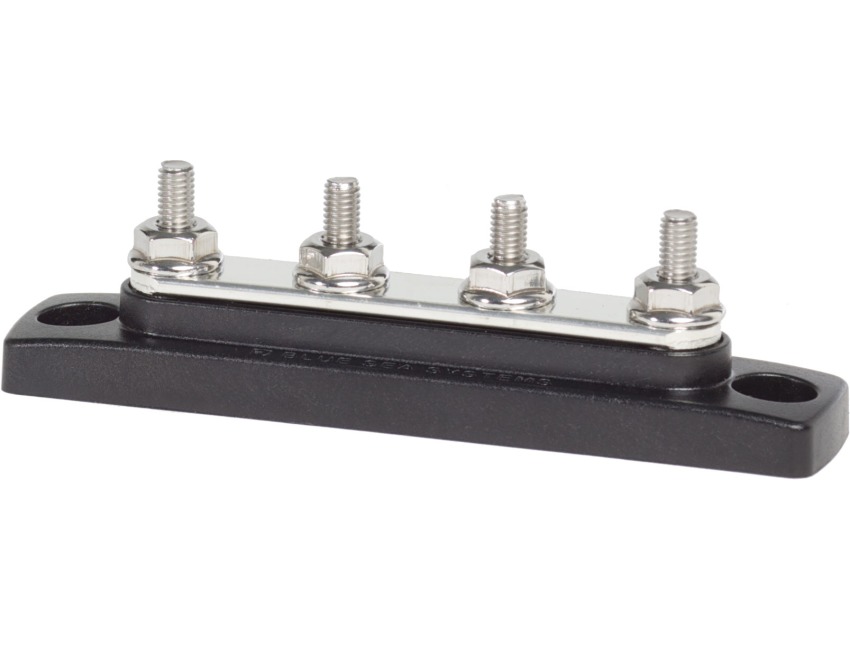

Blue Sea Common 100A Mini BusBar - 4 Gang

Part No. 2305

Great for limited space applications

Specifications:
Maximum Voltage - 300V AC48V DC
Number of Terminal Studs - 4
Terminal Type - #10-32 Stud
Continuous Rating - 100A
Base Material - UL 94-V0 Rated - Glass Reinforced Thermoplastics
Bus Material - Tin-Plated Copper CDA 110/ UNS11000
Stud Torque - 18 in-lb (2.03 Nm)
Weight - 0.15lb (0.07 kg)

Specification List

Weight 0.15lb (0.07 kg) Country of Origin USA
Tariff Code 85369090 Type Bus Bars
Sub-Type -
