Blue Sea - Battery Terminal Mount BusBars - PN. 2340
Click to enlarge
MPN 2340
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

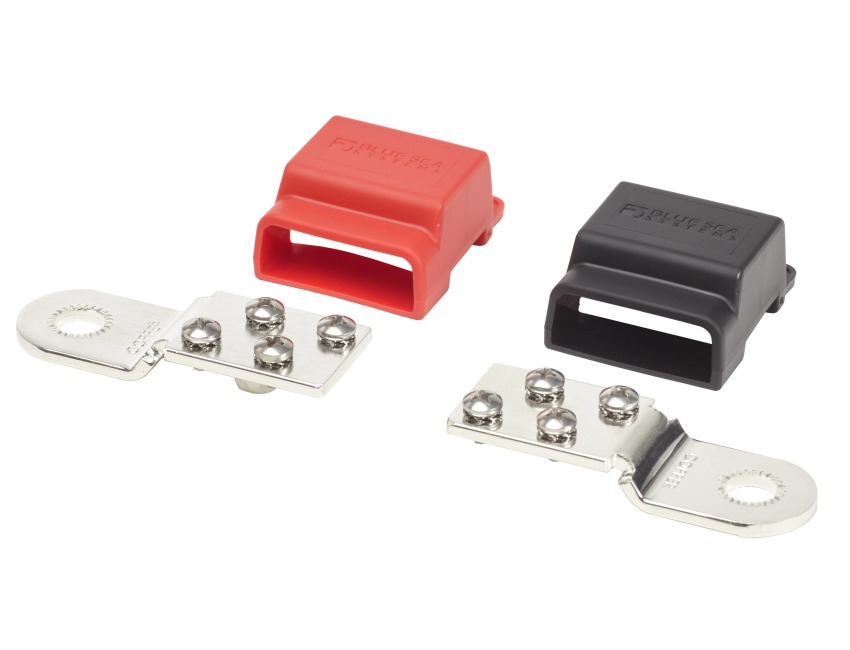

Blue Sea Battery Terminal Mount BusBars
Part No. 2340Easily add positive and negative busbars directly to a threaded-post battery terminal
Tin-plated pure electrical copper for maximum conductivity
Insulating covers meet ABYC/USCG insulation requirements
Screw terminals for securing wires
Includes four 16-14 AWG and four 12-10 AWG Nylon insulated ring terminals
Specifications:
Maximum Voltage - 32V DC
Continuous Rating - 100A DC
Bus Material - Tin-Plated Copper C11000
Mounting Hole - Clearance for Ø3/8 [M10] stud
Screw Terminal Type - #8-32 Screws with Captive Star Lock washer
Weight - 0.25lb (0.11 kg)
Specification List
| Weight | 0.25lb (0.11 kg) | Country of Origin | USA |
|---|---|---|---|
| Tariff Code | 85369090 | Type | Bus Bars |
| Sub-Type | - |
