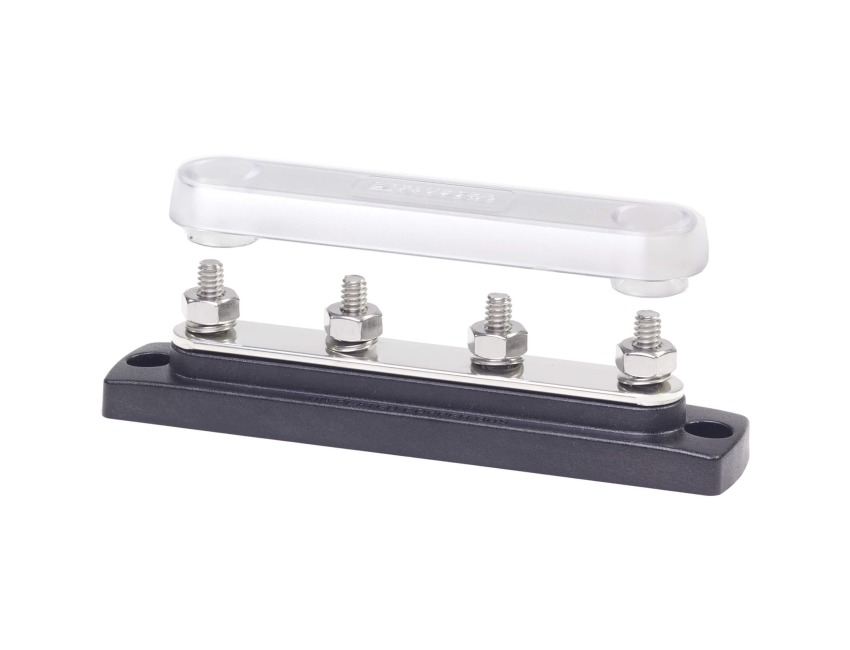

Blue Sea - 4 way - BUS BAR with cover - 12V - 150 Amps - 2307
Click to enlarge
Code184255038245
MPN 2307
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
Blue Sea Systems BUS BAR with cover 150A
PN 2307
PRODUCT FEATURES:
Can be used as a busbar for positive distribution or for the collection of negative or AC ground circuits.
CE Certified
PRODUCT SPECIFICATIONS:
Blue Sea Systems Part No.: 2307
Maximum Voltage: 300V AC • 48V DC
Number of Terminal Studs: 4
Terminal Type: 1/4" Stud
Continuous Rating: 130A AC • 150A DC
Base Material: Reinforced Polycarbonate
Bus Material: Tin-Plated Copper CDA 110 / UNS 11000
Cover Material: Clear Polycarbonate
Weight: 0.39lb (0.18 kg)
Specification List
| Type | Bus Bar with cover | Sub-Type | BusBar with cover |
|---|---|---|---|
| Country/Region of Manufacture | United States |
