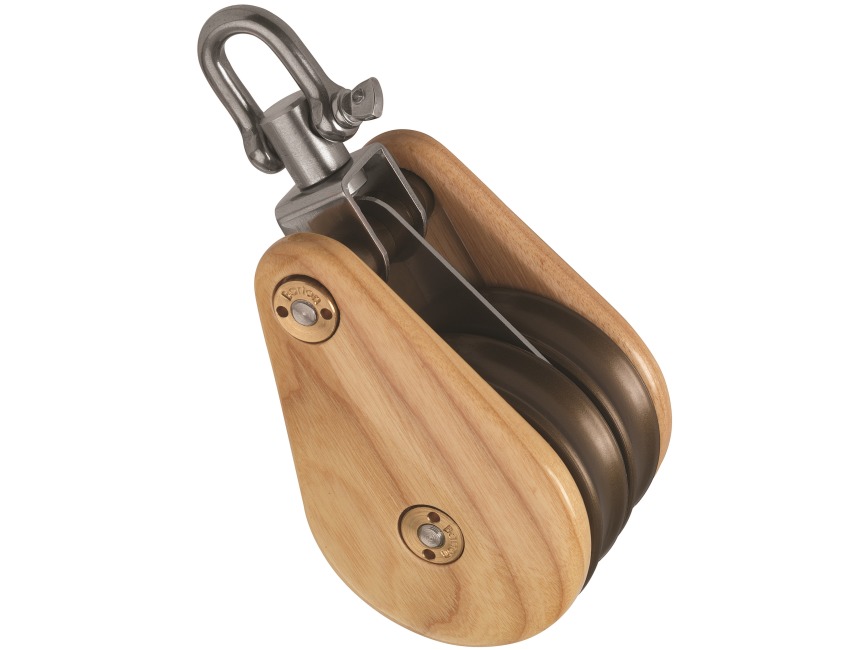

Barton - Double - Swivel - Classic Wooden Block S3 - 52360

Barton S3 Classic Wooden Block Double - Swivel

Part No: 52360

Combining high performance engineering and classic design, our range of wooden blocks has been designed for mariners who appreciate elegance and want technical excellence. The range has been named in honour of the flagship of the British Navy – the HMS Victory.

Crafted by sailors for sailors, the Victory blocks are manufactured in the UK from traditional ash wood. Available in a clear high gloss marine varnish finish, the blocks are ready for immediate installation. Victory blocks are bolted together and can be disassembled for re-varnishing or painting to compliment the aesthetics of a classic dinghy or yacht.

The Victory collection of wooden blocks not only look good, but are highly durable and designed to withstand many years of use in harsh marine environments. The sleek style wooden plates conceal the modern technical working of Barton's proven high performance engineering, with Delrin ball bearings, Torlon needle bearings, gun metal shaded sheave and solid brass fittings.

Specification:
Metric (Imperial)
Sheave Size: 64mm x 18mm (2 1/2 × 45/64")
Maximum Rope Diameter: 12mm (7/16")
Breaking Load: 1400Kg (3086 lbs)
Max Rolling Load: 700kg 1543 lbs)
Length: 120mm
Weight: 190g
