YANMAR WATER PUMP IMPELLER - 2GMF - 3GMF - 2GM20F - 2QM20 - 3JH2L-TNE - 124223-42092

Click to enlarge

Code150994923235

MPN 124223-42092

£64.82

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

GENUINE YANMAR WATER PUMP IMPELLER

Yanmar part number: 124223-42092

Genuine Yanmar Parts & Accessories
Please check the part number or measure your old impeller very carefully.
This item may not be returned if the wrapper is opened.

Water Pump Impeller to fit Yanmar Diesel Engines:
2GM(F), 3GM(F), 2GMFL, 3GMFLE 3HM, 3HMF, 3HM35, 3HM35C, 3HM35F 2GM20F, 2GM20FVE 3GM30F, 3GM30FVE 2QM20, 3QM30, 2QM, 2QM20Y 3JH2L-NE, 3JH2L-TNE 4JH2L-TNE, 4JH2L-HTNE
There are two types of impeller fitted to some of the above engines.
This is the type has a keyway

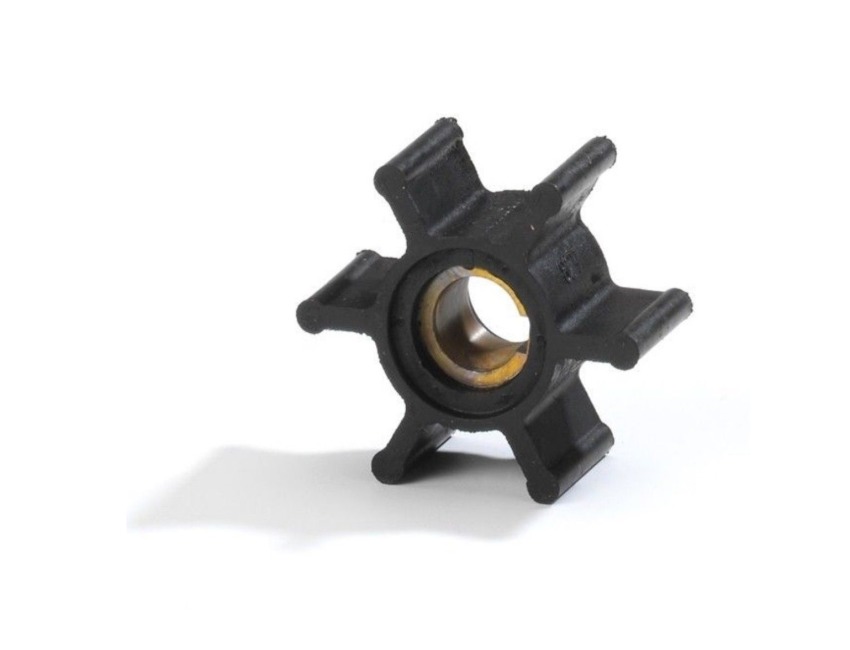

The Photo shows the exact item
(No lubricant)
Yanmar P/N: 124223-42092 Supersedes part numbers:
124223-42090 - IMPELLER 124223-42091 IMPELLER 128296-42070 - IMPELLER
Impeller Dimensions:
No. Blades: 6 Internal Diameter: 12.75mm External Diameter: 50.8mm Depth: 22.1mm

Specification List

Type Impeller - Water pump Sub-Type IMPELLER
Country/Region of Manufacture Japan
