Ultraflex G88NR (anti-feedback) Rack and pinion steering helm
Click to enlarge
Code1
MPN G88NR
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

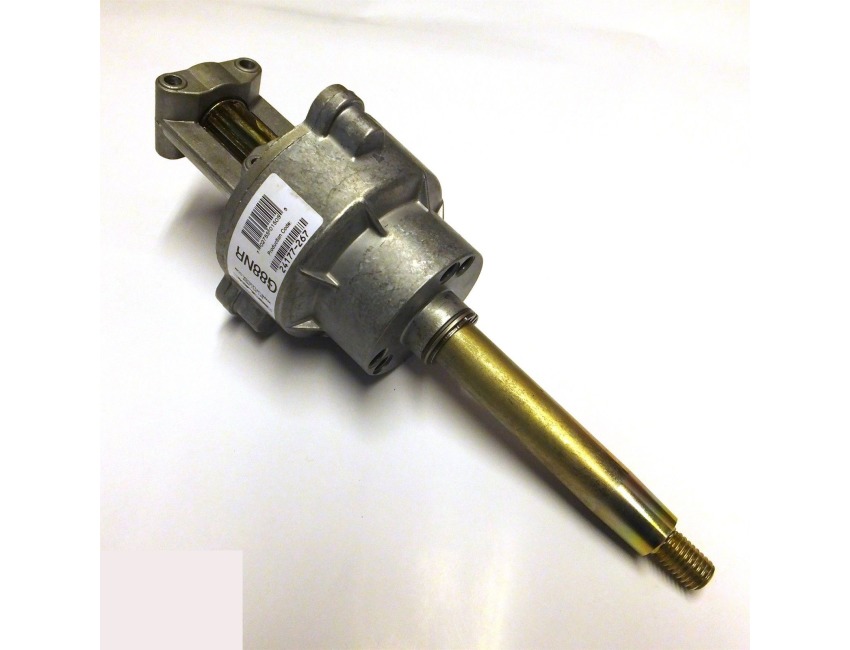

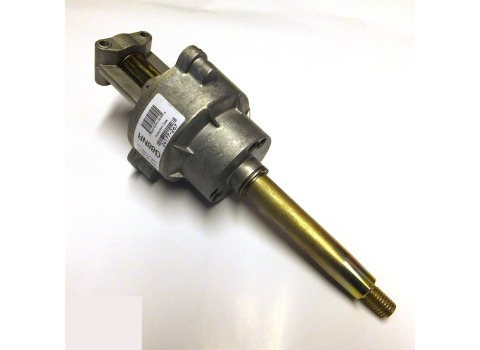

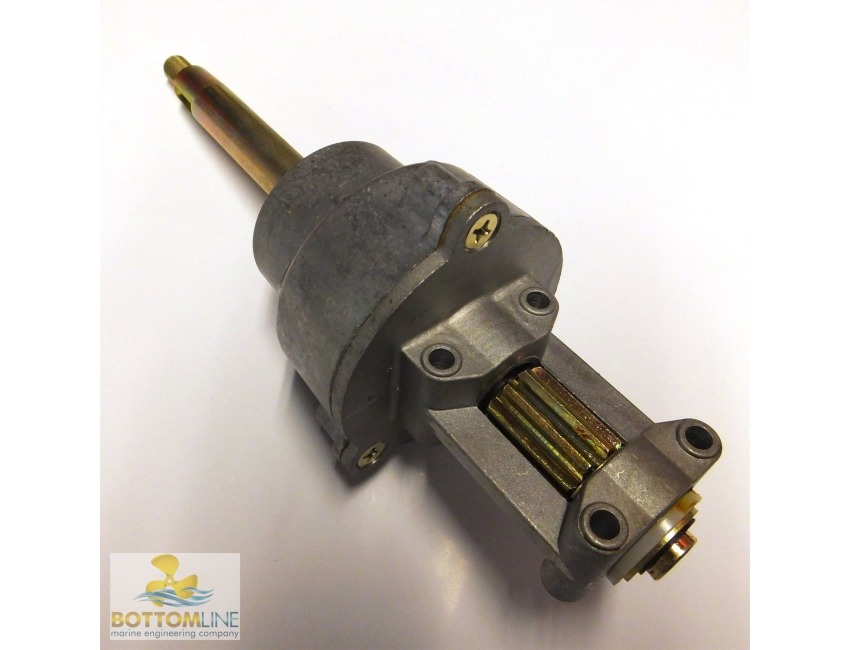

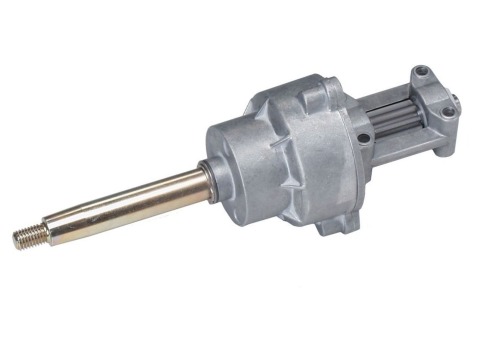

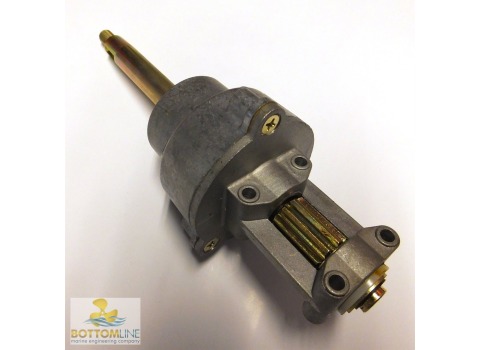

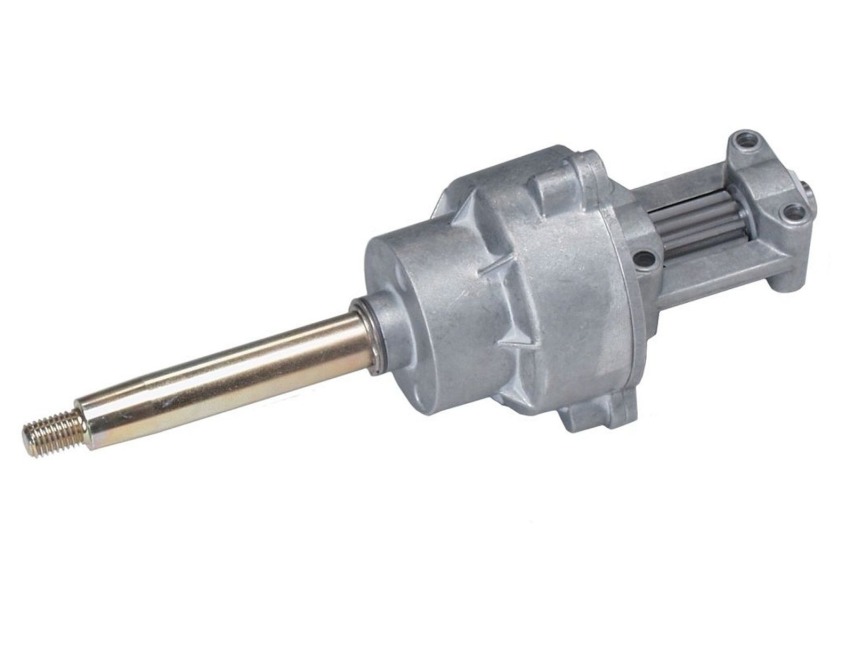

Genuine Ultraflex G88NR (anti-feedback) Rack and pinion steering helm
Ultraflexpart no. G88NR
This listing is for the helm only, please see below for other components needed for a complete system
FEATURES AND TECHNICAL SPECIFICATIONS:
Easy and safe steering: patented non reversible G88NR helm eliminates the continuous load on the operator caused by the propeller torque
Made exclusively in corrosion resistant materials
Optional 90 or 20 installation
Standard 3/4 tapered shaft
Lock-to-lock steering wheel turns: 3,5
Stroke: 210 mm (8.2)
Maximum allowable steering wheel diameter: 420 mm (16.5)
T86 and T88NR steering systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat
Exceeds EN 28848 safety standards
Exceeds ABYC P17 safety standards
A COMPLETE STEERING SYSTEM CONSISTS OF: Helm + Steering cable + Mounting Bezel + Steering wheel + Engine link arm (usually supplied with the outboard)
Helm assembly:
G86 - 39418G standard G88NR - 39419J - anti-feedback
Steering Cables:
Various lengths - Please contact us for more information
Mounting bezel:
X34 - 36654B - black, 90 mounting
X34W - 40654C - white, 90 mounting
X35 - 36655C - black, 20 mounting
Specification List
| Type | Rigging Components | Sub-Type | Helm |
|---|---|---|---|
| Country/Region of Manufacture | United States |
