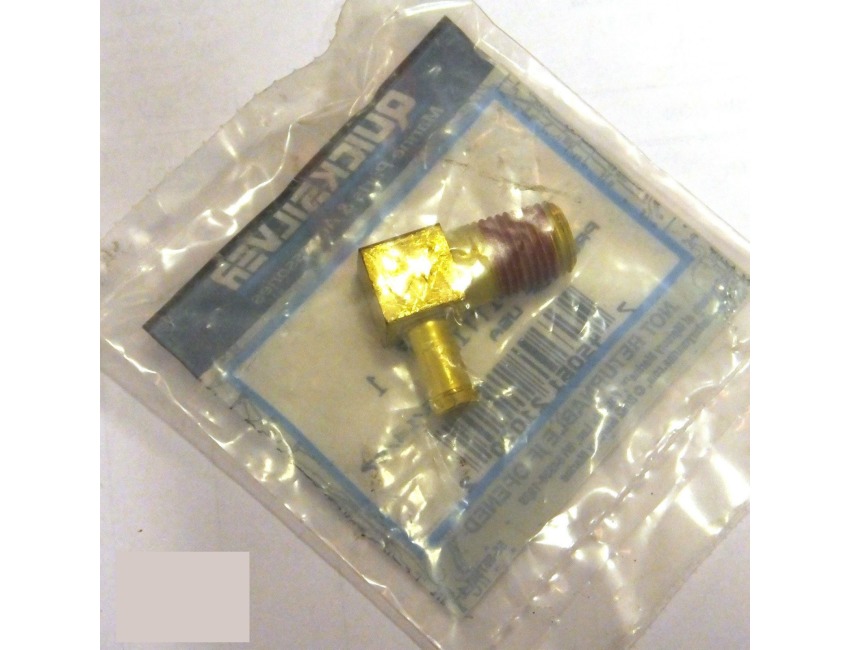

Quicksilver hose tail - Pipe fitting - Elbow connector barb - 1/4" NPT 22-920071

Click to enlarge

Code184801311929

MPN 22-920071

£64.30

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

Fuel Connector Elbow 1/4" NPT Diameter x 8mm(5/16")

GenuineQuicksilverelbow fuel fitting for 8mm hose.
Used on various V6 outboard motor fuel systems 150hp - 225hp
also used forexhaust water hose connection on 150hp - 225hp
Dimensions:
Barb Diameter: 8.4mm (for 5/16" ID or 8mm ID hose)
ThreadDiameter: 13.5mm (1/4"×18 NPT)
Hole diameter: 5.7mm
Material: Brass

Specification List

Type Hose tail Sub-Type Elbow Hose tail
Country/Region of Manufacture United States
