LOWRANCE HOOK Reveal 5 83/200 HDI Chartplotter / Chirp Fishfinder - 000-15504-001

Click to enlarge

Code166468835317

MPN 000-15504-001

£295.22

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

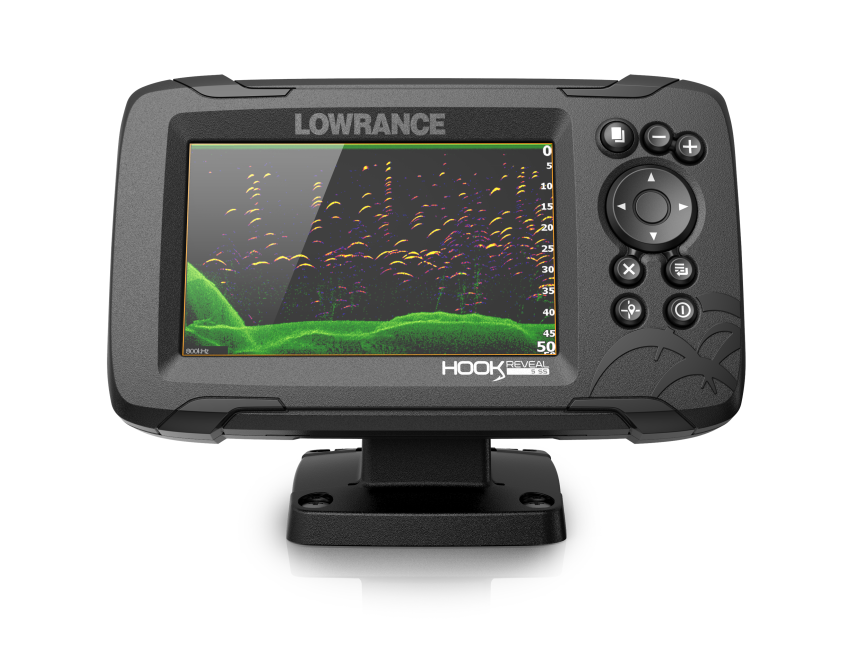

LOWRANCE HOOK Reveal 5 83/200 HDI Chartplotter / Chirp Fishfinder

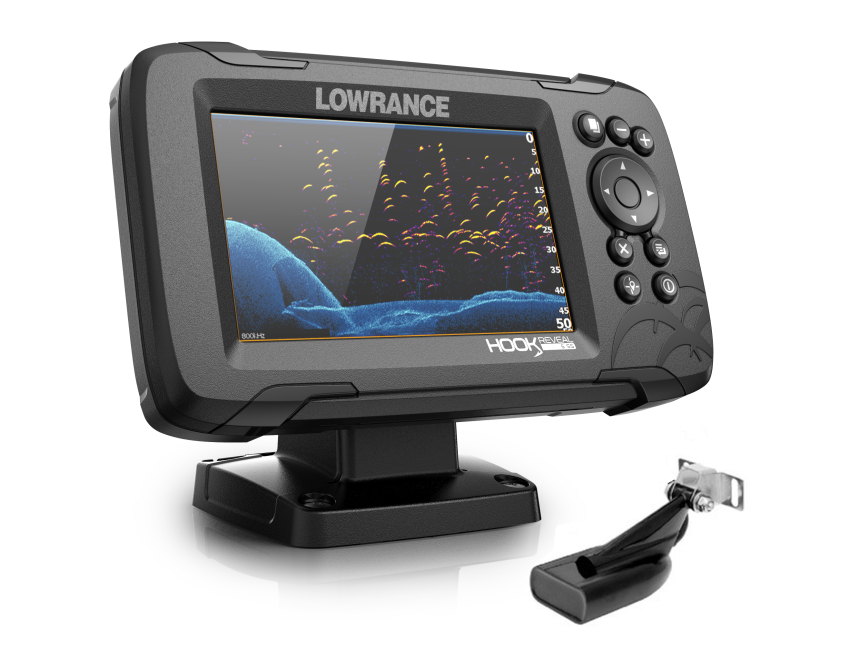

Hook Reveal 5 Fishfinder/Chartplotter c/w 83/200 HDI™ Transducer
(Base Cartography Only)

From the world’s best-selling series of fishfinders comes HOOK Reveal, a new fishfinder/chartplotter with one of our most popular features – FishReveal™.

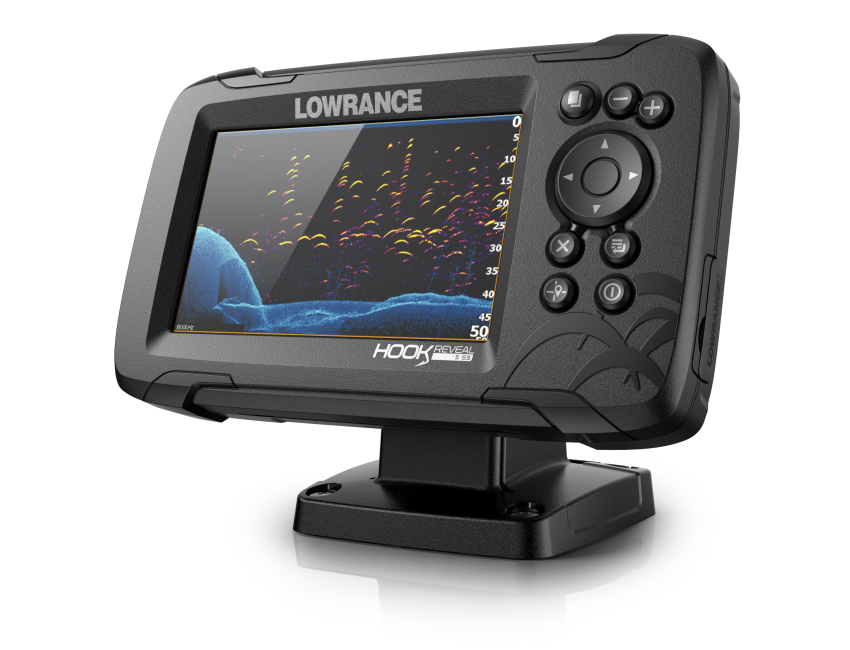

This powerful fishfinding tool combines the proven target identification of Lowrance CHIRP sonar with the high-resolution images of bottom detail and structure from DownScan Imaging™.

That gives you the ultimate fishing view, allowing you to target fish and get the best view of how they are relating to structure without the need for a CHIRP-DownScan Imaging™ splitscreen display.

Designed to make the most of your time on the water, HOOK Reveal ensures you get the best sonar image every time with Autotuning Sonar, a unique feature that automatically adjusts sonar settings as fishing conditions change.

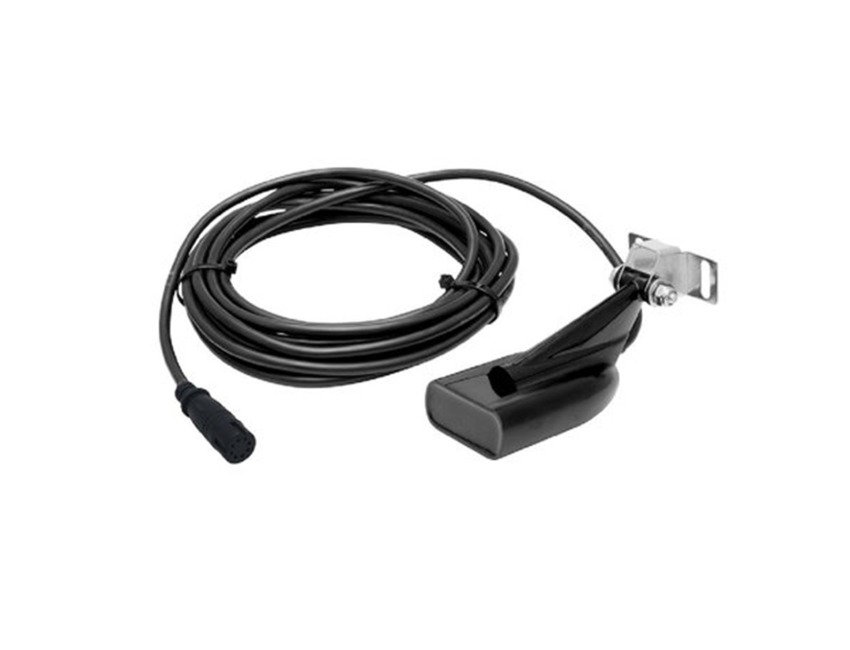

Our 83/200 HDI model provides improved sonar performance in deep water.

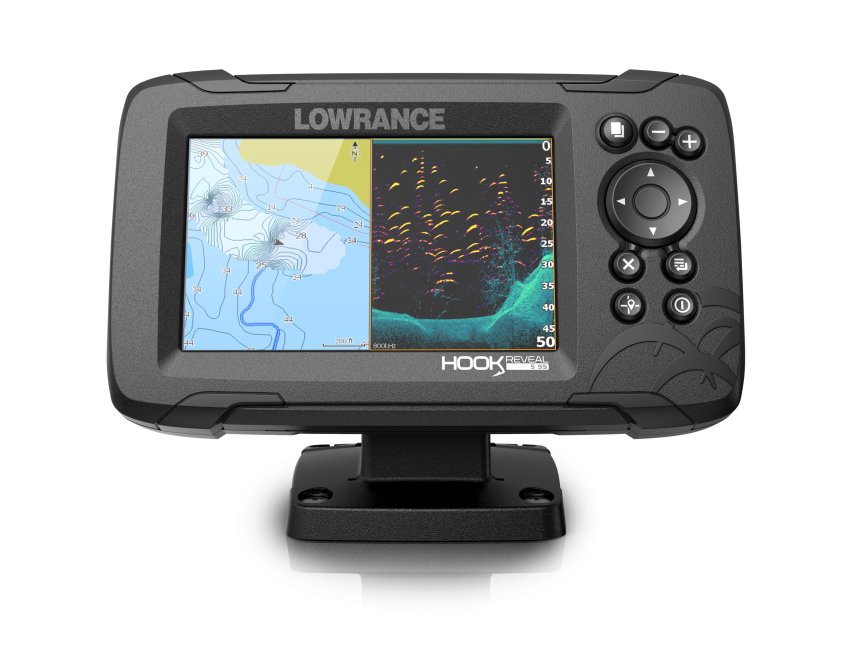

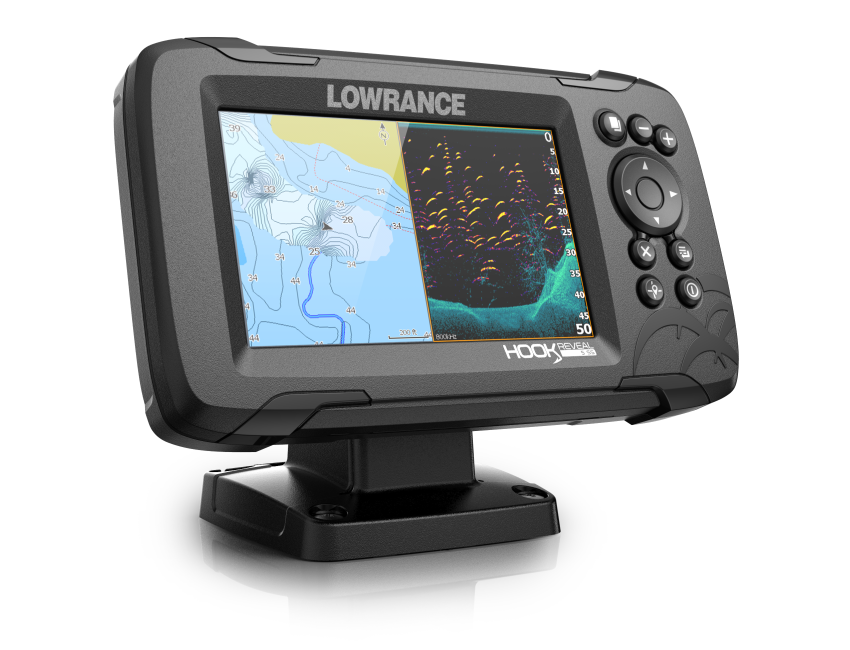

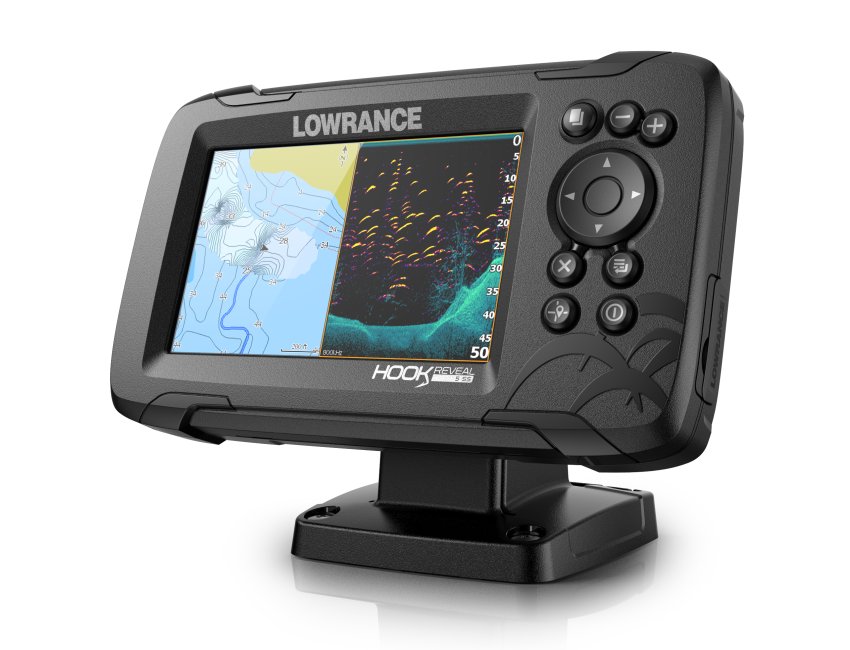

HOOK Reveal comes with C-MAP chart compatibility to get you on the fish, as well as Genesis Live real-time mapping compatibility.

Map uncharted areas – down to ½-foot contours – with Genesis Live. (Additional purchase required)

Specification:

Display

Backlight Color Pure White LED

Resolution 800 × 480

Screen Brightness >1000 NITS

Size and Type 5" (127 mm)SolarMAX Display

Viewing Angles 80° top/bottom, 85° left/right

Electrical

Power Consumption, typical 0.9A @ 13VDC with backlight on full

Recommended Fuse Rating 5A

Supply Voltage 12v DC (10.8-17VDC)

Humidity 60°C, 95% relative humidity (RH) for 18 hours

Environment

Operating Temperature Range 5°F to 131°F (-15°C to 55°C )

Shock and Vibration 100,000 cycles of 20 G

Storage Temperature Range 4°F to 140°F (-20°C to 60°C )

Waterproof rating IPX7 with card door closed

GPS

Correction DGPS, WAAS

Time to First Fix 30s

MFD

Cartography included: C-Map World Base Map

Cartography supported: C-MAP Lake Insight HDC-MAP Insight ProC-MAP (MAX N, MAX N+) Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)

External Storage

Micro SD Card(32 gb Max)

GPS

1 Hz GPS GLONASS WAAS EGNOS MSAS

Sonar(inc. compatibility)

Integrated: CHIRP Broadband DownScan

Waypoints, Routes, Tracks

3000 Waypoints 100 Routes 100 Trails

Compass Safe Distance

12" (300mm)

Physical

Dimensions (W x H x D) 7.31" (185.7 mm) x 4.32" (109.8 mm) x 4.53" (115.0 mm)

Mounting Type Gimbal Bracket Front Dash Flush Mount

Weight 0.90 lb. (0.41 kg)

Specification List

Type Chartplotter-Fishfinder Sub-Type CHIRP Sonar
