Loncin LC152F-P5 Engine 5/8" - Shaft Replaces Honda GX100 - Wacker Plate Belle Cement Mixer

Click to enlarge

Code1

MPN LC152F-P5

£199.99

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

Heavy item - Please contact us before clicking to buy if you are in Channel Islands, Isle of Wight, Scilly Isles, Scottish Highlands or Scottish Islands

Unfortunatly we cannot ship this item to Ireland / Northern Ireland

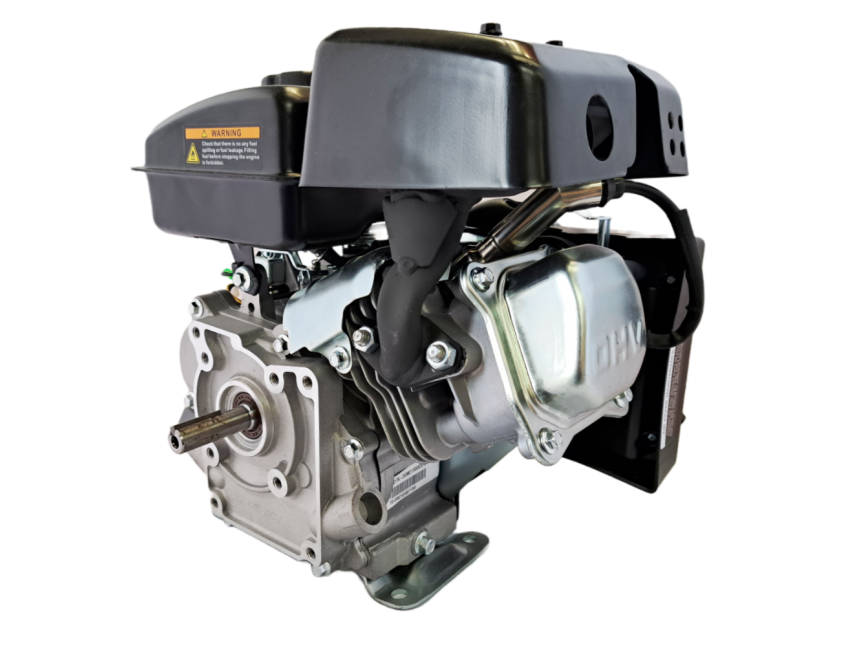

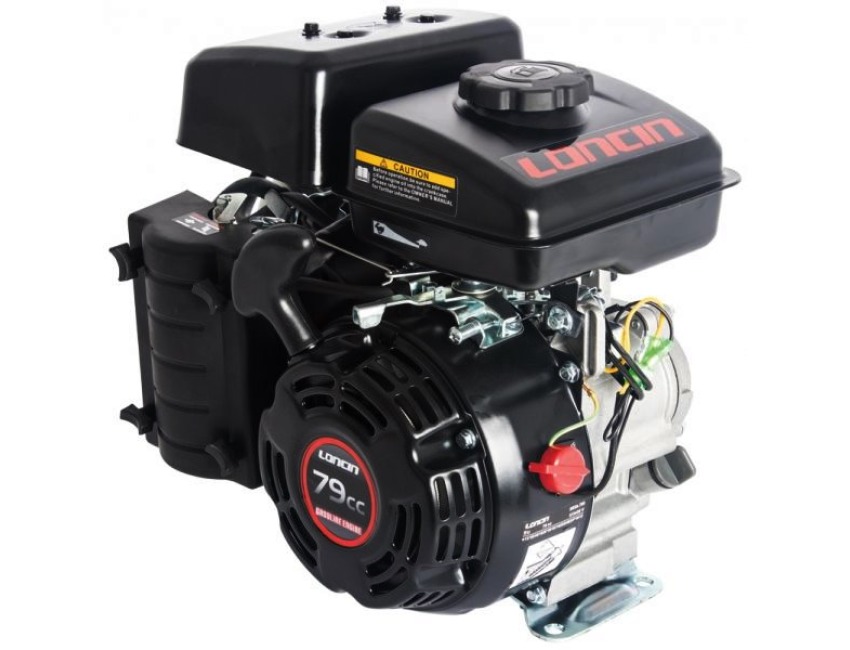

Loncin 2.5hp Stationary Engine - replaces Honda GX100 / G100

4 stroke petrol engine runs on Unleaded petrol
Easy recoil pull start system
Forged crankshaft
Low Oil Alert shuts engine down if oil level is dangerously low
Note - this engine replaces the G100 / GX100 / EY08 with a 5/8" (15.875mm) parallel output shaft

Specifications:
Model: LC152F
Type: 4 Stroke
Output shaft rotation: Anti-clockwise (looking from shaft side)
Fuel Type: Unleaded Petrol
Starting Method: Recoil Pull Start
Piston Displacement: 97cc
Bore Stroke: 52mm 46mm 2.05 1.81
Compression ratio: 5.61
Gross Power: 2.5Hp (1.86kW) /3600rpm
Net Power: 1.8Hp (1.35kW) /3600rpm
Rated speed: 3600r/min
Idle Speed: 1700 RPM +- 150
Output shaft size: 5/8" parallel with keyway
Output shaft rotation: Anti-clockwise (looking from shaft side)
Ignition system:Transistorized, magneto
Fuel Sytem: Carburettor
Lubrication System: Splash
Speed Governor: Centrifugal mass
Air Filter: Dual element, semi-dry (i.e. oil dampened)
Oil capacity: 0.45 L0.12gal)
Fuel tank capacity: 1.4 L(0.37gal)
Noise Level @ 7m: 70dBA
Dimensions(L x W x H): 280 × 270 × 345mm
Net Weight: 9Kg

Specification List

Replacement for Honda GX100 with 5/8" Output Shaft Gross Power 2.5Hp (1.86kW) @3600rpm
Net Power 1.8Hp (1.35kW) @3600rpm Output Shaft Size 5/8" parallel, with keyway
Reference OE/OEM Number GX100
