Echomax - Active-X Radar Target Enhancer - 560057

Click to enlarge

MPN 560057

£469.99

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

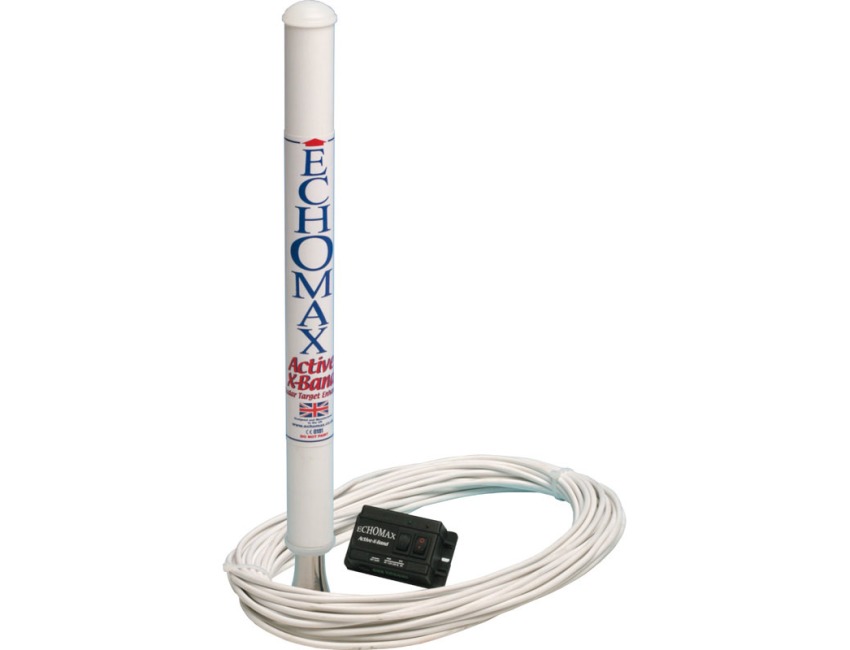

Echomax Active-X Radar Target Enhancer

Echomax Active-X Radar Target Enhancer - The state of the art Echomax Active-X-Band Radar Target Enhancer receives the signals from transmitting radars, amplifies them and returns a stronger signal. This increases the likelihood of detection reducing the risk of collision and helps to alert oncoming vessels of your position.
The unit is supplied with a control box with base or rear cable entry facility, LED indicators to show power and radar signal reception & an externally accessible fuse. It also features a switchable internal buzzer which sounds when the unit is being painted" by radar signals and the option of attaching to an 8A Volt free external alarm facility.
Specification:
• Voltage: 12V DC - +30%-10% (voltage surge and cross polarity protected)
• Standby Current Consumption: less than 15mA
• Position Accuracy: Within 1 metre
Performance Response:
• Zero Degrees of heel: 111.36m.sq
• +/- 10 Degrees of heel: 78.96m.sq
• +/- 20 Degrees of heel: 20.80m.sq
Dimensions:
• Antenna: L478mm x W40.5mm
• Weight: 327g (excl cable)
• Cable Length: 24m
• Control Box: W92mm x H51mm x D38mm
Please Note: Mounting bracket shown is not supplied. The unit has a standard 1" × 14 female threaded socket on the base. For optional base mount bracket see Product Code: 230074 and for a mast mounting bracket see Product Code: 230083

Specification List

Type Radar reflector
