Blue Sea Systems - Weather Deck Fuse Panel - 6 Position - MPN 4306

Click to enlarge

Code164844718190

MPN 4306

£177.35

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

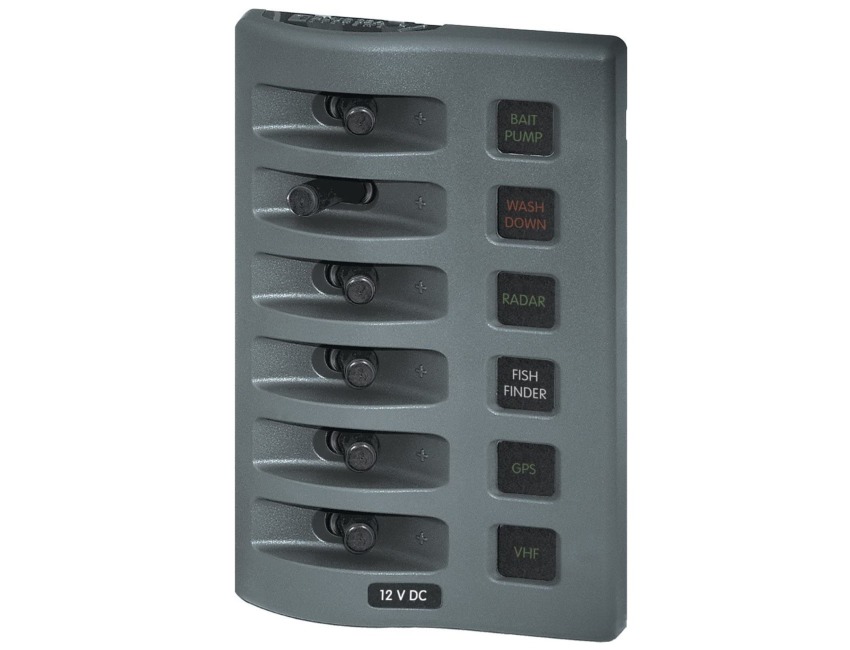

Blue Sea Systems - Weather Deck Fuse Panel - 6 Position

PN: 4306
Panel front rated IP67 when properly mounted with watertight mounting gasket
IP67 – protected against immersion up to 1 meter for 30 minutes
Designed for flybridge and open cockpit applications
Independent label backlighting circuit for remote switching and dimming
Available in 2, 4, 6, and 8 circuit models
Each panel can be mounted in four different orientations

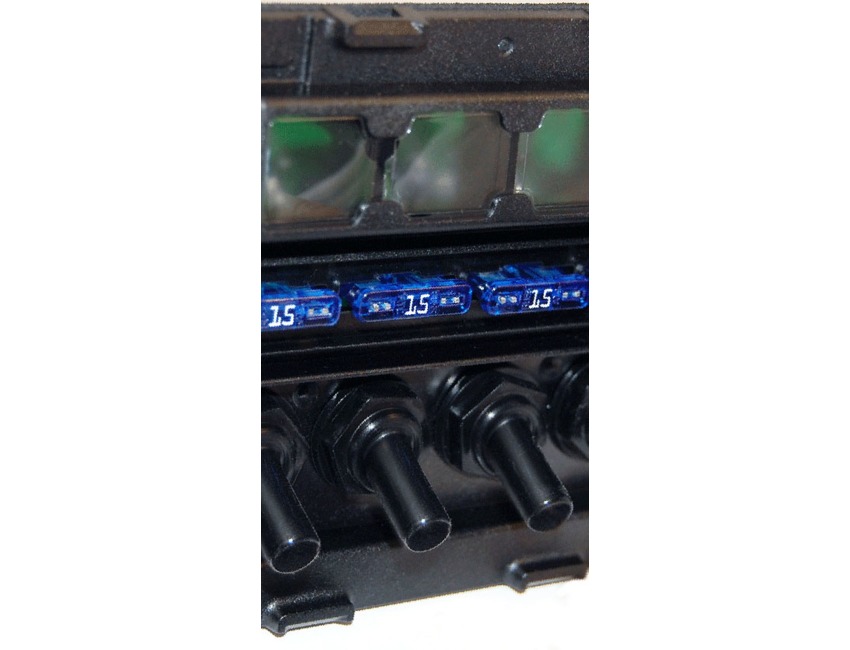

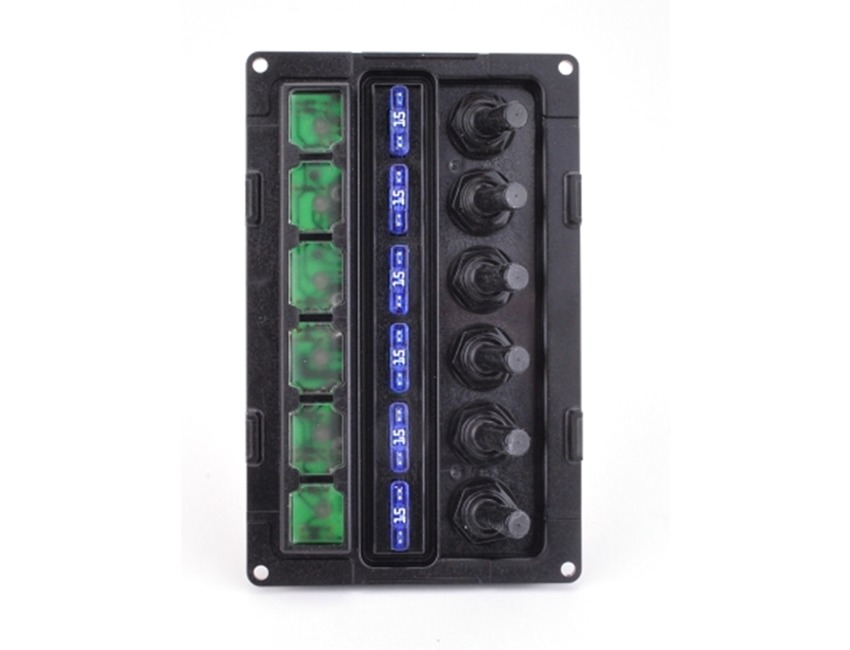

Integrated ATO/ATC fuse based circuit protection
Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.

Specification List

Type Switch/fusepanel Sub-Type Waterproof type
Country/Region of Manufacture United States
