Blue Sea Safety Hub 150 Fuse block - 7748

Blue Sea Safety Hub 150 Fuse block (Fuses not included)

PN 7748

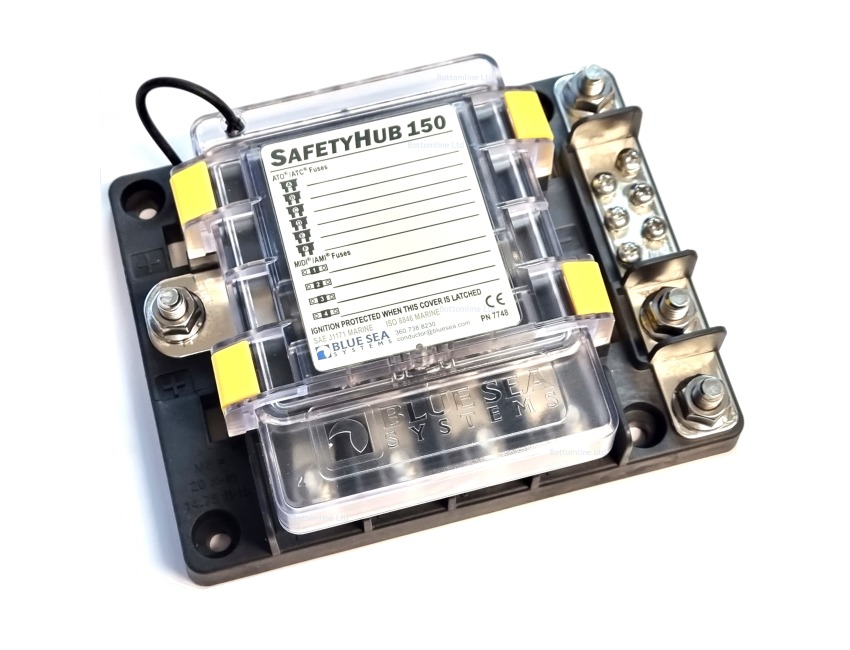

The SafetyHub 150 is an ignition protected fuse block with screw termination. It is safe for use on gasoline powered boats, reduces wiring connections, and consolidates up to ten fused circuits.

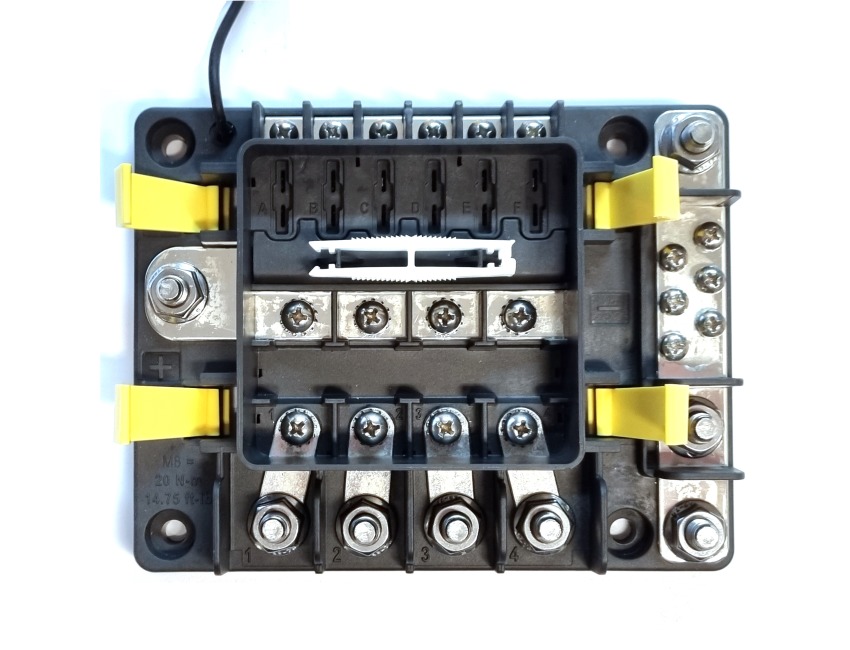

Four 30A?200A MIDI® or AMI® Fuses for high-amp circuits including panel feeds, windlasses, and stereo amplifiers

Six 1A?30A ATO® or ATC® Fuses for low amp circuits including bilge pumps, electronic and lights.

Sealed cover protects fuses from the harsh marine environment

Negative bus provides common location for negative collection

Circuit identification label with write-on capability

Fuse puller easily removes ATO® or ATC® fuses

Cover provides storage space for two spare ATO® or ATC® and two spare MIDI® or AMI® fuses and mounting screws

Fuses sold separately

Regulatory:

CE marked. Meets ISO 8846 ignition protection, and SAE J1171 external ignition protection requirements.

IP66 - protected against powerful water jets.
