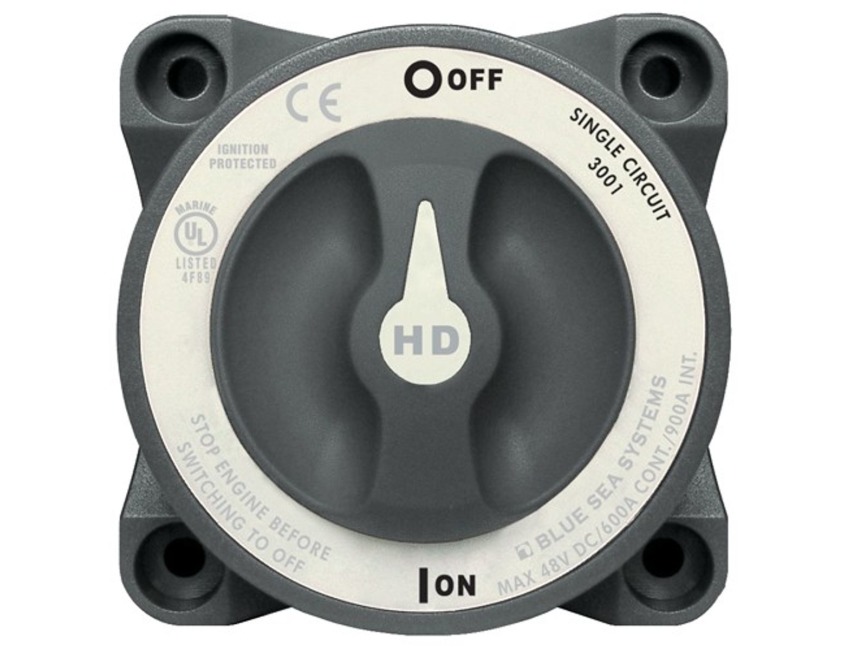

Blue Sea HD Battery Switch On/Off AFD 600A - Grey - 3001

Click to enlarge

Code1

MPN 3001

£149.41

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

HD BATTERY SWITCHES (Heavy Duty) Up to 600

AFD - Alternator Field Disconnect

Ampere continuous rating for large diesel engines.

Label with international legends

Tactile indicator conveys knob position by feel

Accepts up to 4/0 AWG (120mm2) battery cables

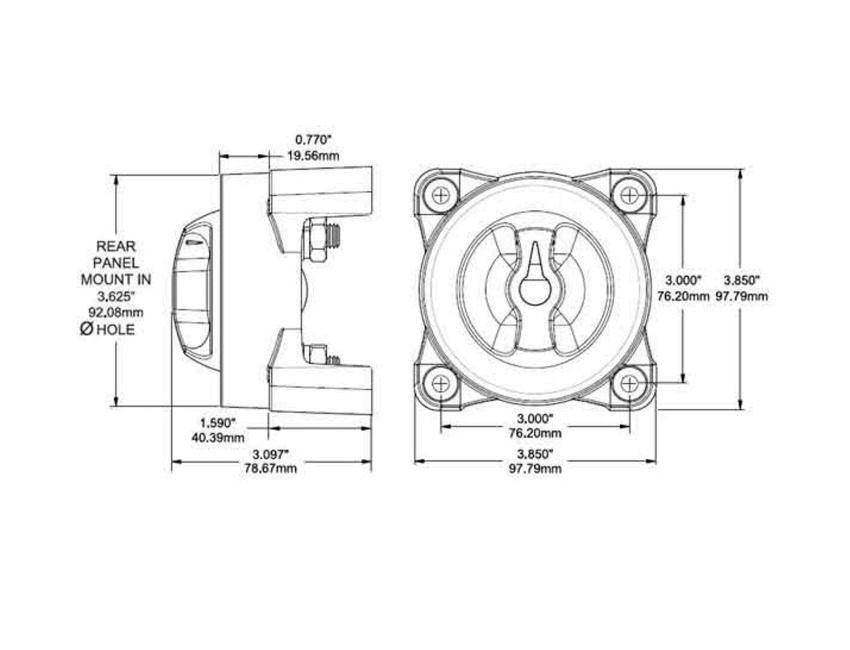

Case design allows surface or rear panel mounting

7/8" (22mm) stud length accepts multiple cable terminals

One-piece terminal stud design never loosens over time

M12 tin-plated copper studs for maximum conductivity & corrosion resistance, accepts 1/2" (M12) ring terminals

Regulatory

CE marked, ISO 8846

UL Listed - UL 1107 electric power switches

Meets ABYC requirements

Meets UL1500 and SAE J1171 external ignition protection requirements

IP66 protects against powerful water jets

Specification List

Type Battery switch Sub-Type On/OFF
